Rear Window Defogger

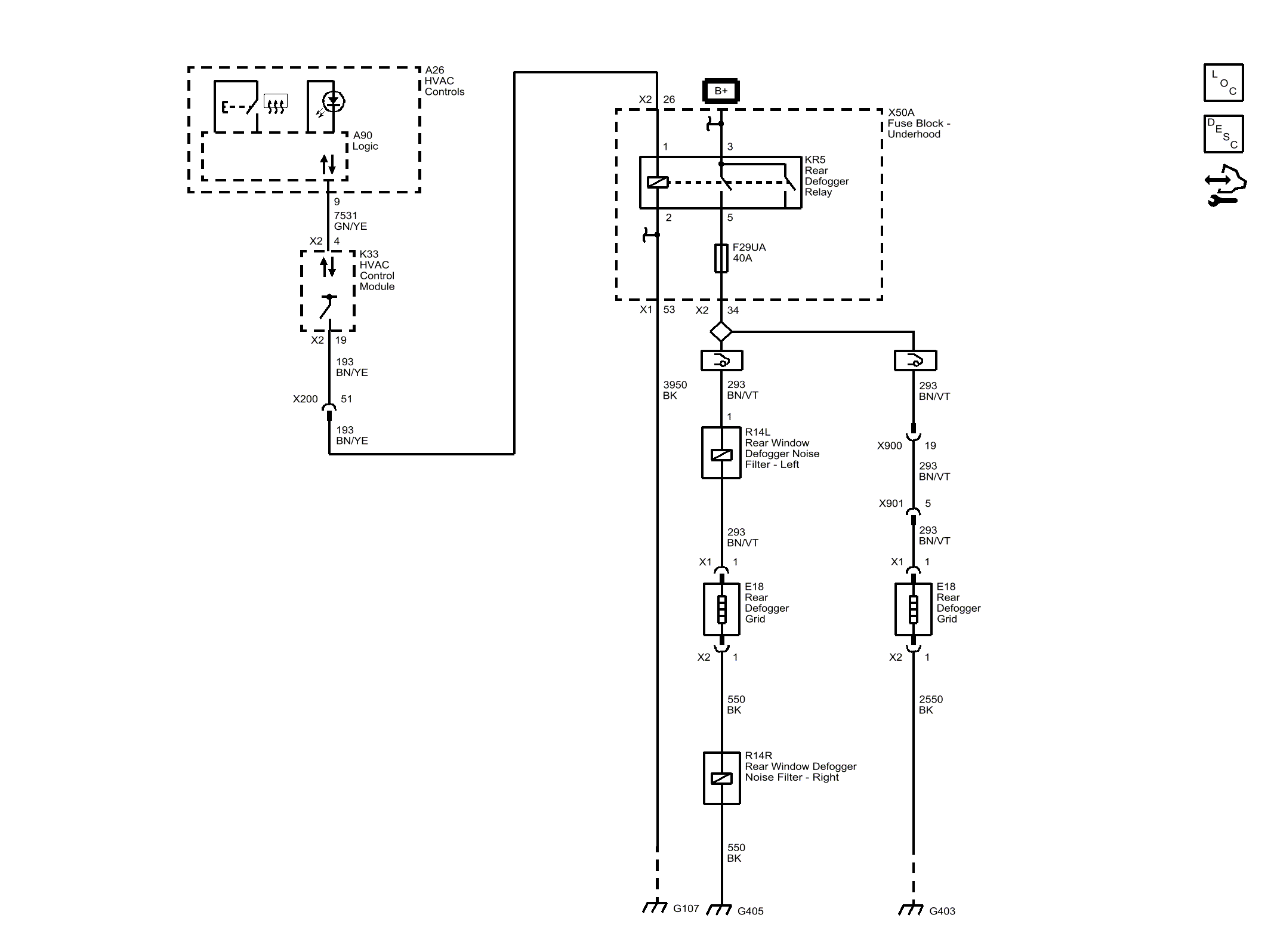

Fig 1: Rear Window Defogger
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
