Outside Rearview Mirror Replacement

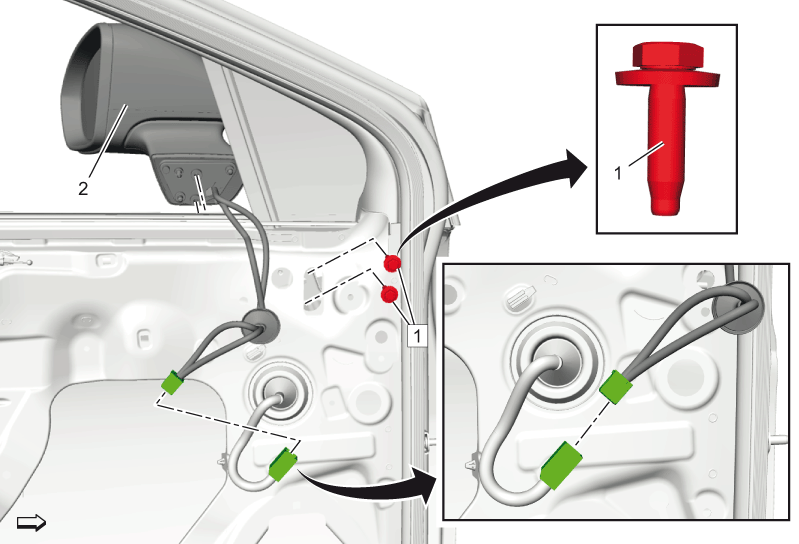

Fig 1: Outside Rearview Mirror
GM4422129Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Water Deflector Replacement
1 Outside Rearview Mirror Bolt (Qty: 2)
Tighten
9 N.m (80 lb in)
2 Outside Rearview Mirror
Procedure
Disconnect the electrical connector.
