Fuel Feed Intermediate Hose Replacement

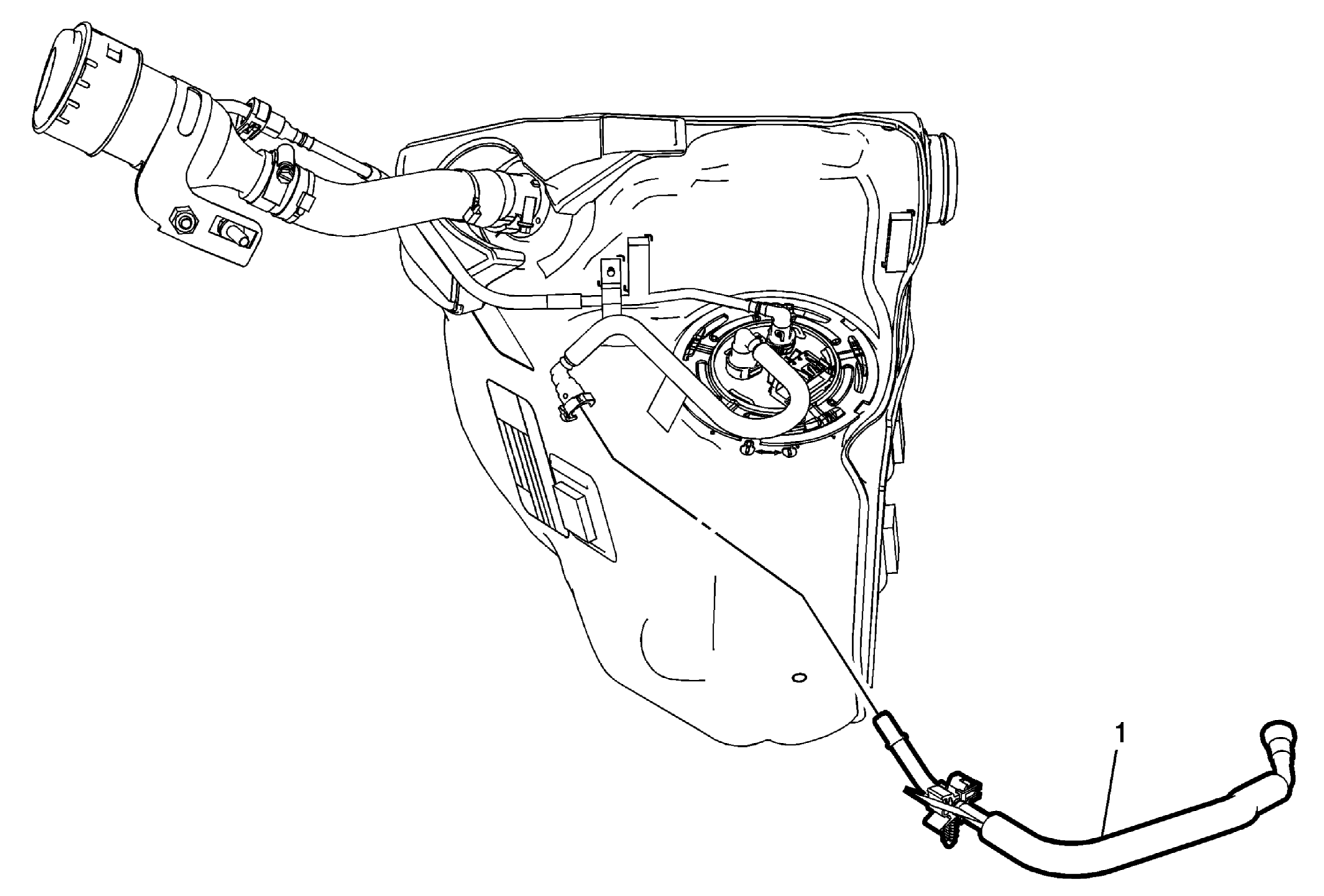

Fig 1: Fuel Feed Intermediate Hose
GM3415313Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the left side fuel tank. Refer to Fuel Tank Replacement - Left Side .
1 Fuel Feed Intermediate Hose
Procedure
Disconnect the fuel feed intermediate hose from the fuel feed hose. Refer to Plastic Collar Quick Connect Fitting Service .
