Fuel Tank Pressure Sensor Replacement

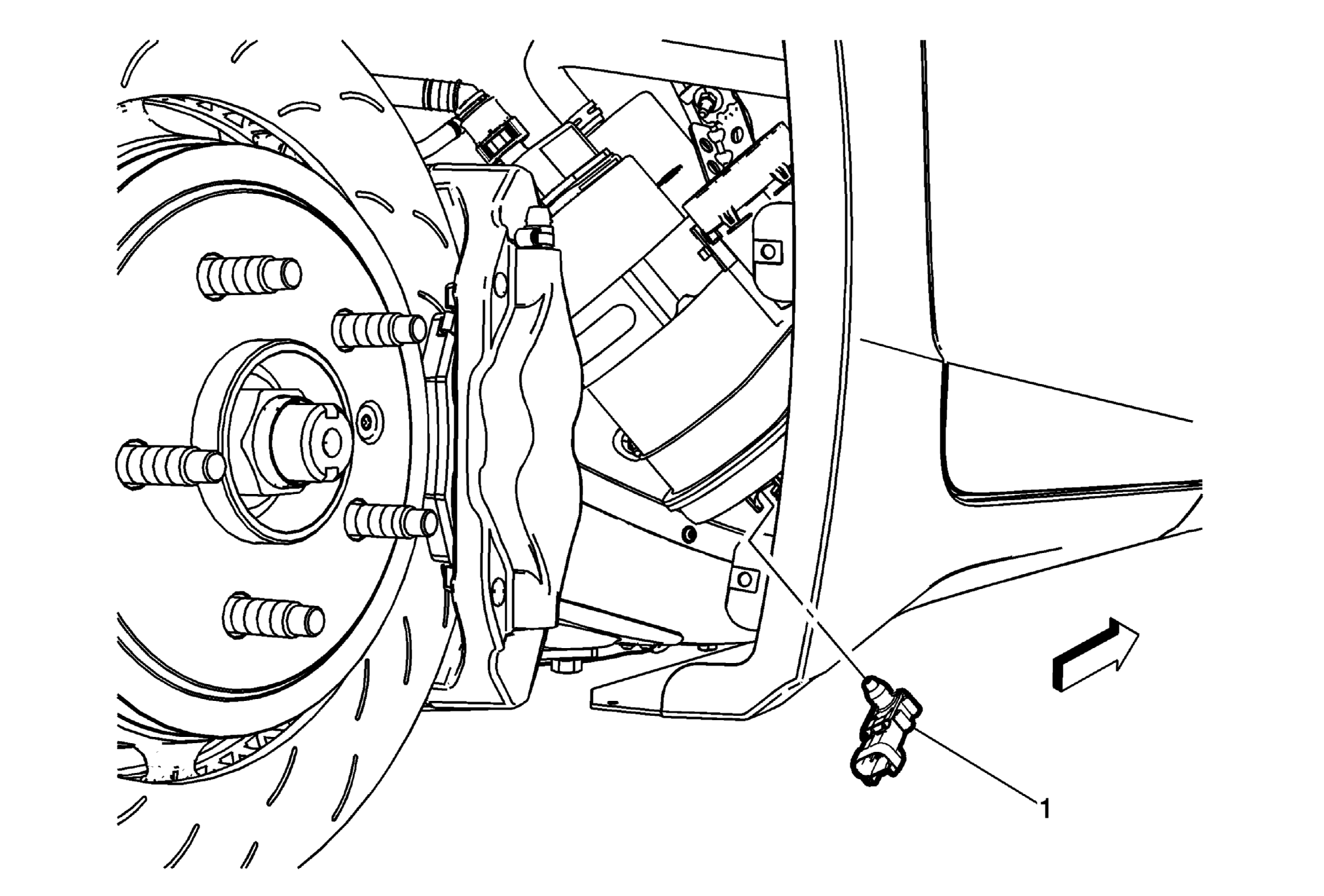

Fig 1: Fuel Tank Pressure Sensor
GM3404748Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear wheelhouse liner. Refer to Rear Wheelhouse Liner Replacement .
1 Fuel Tank Pressure Sensor
Procedure
Disconnect the fuel tank pressure sensor electrical connector.
