Rearview Camera (UVC)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

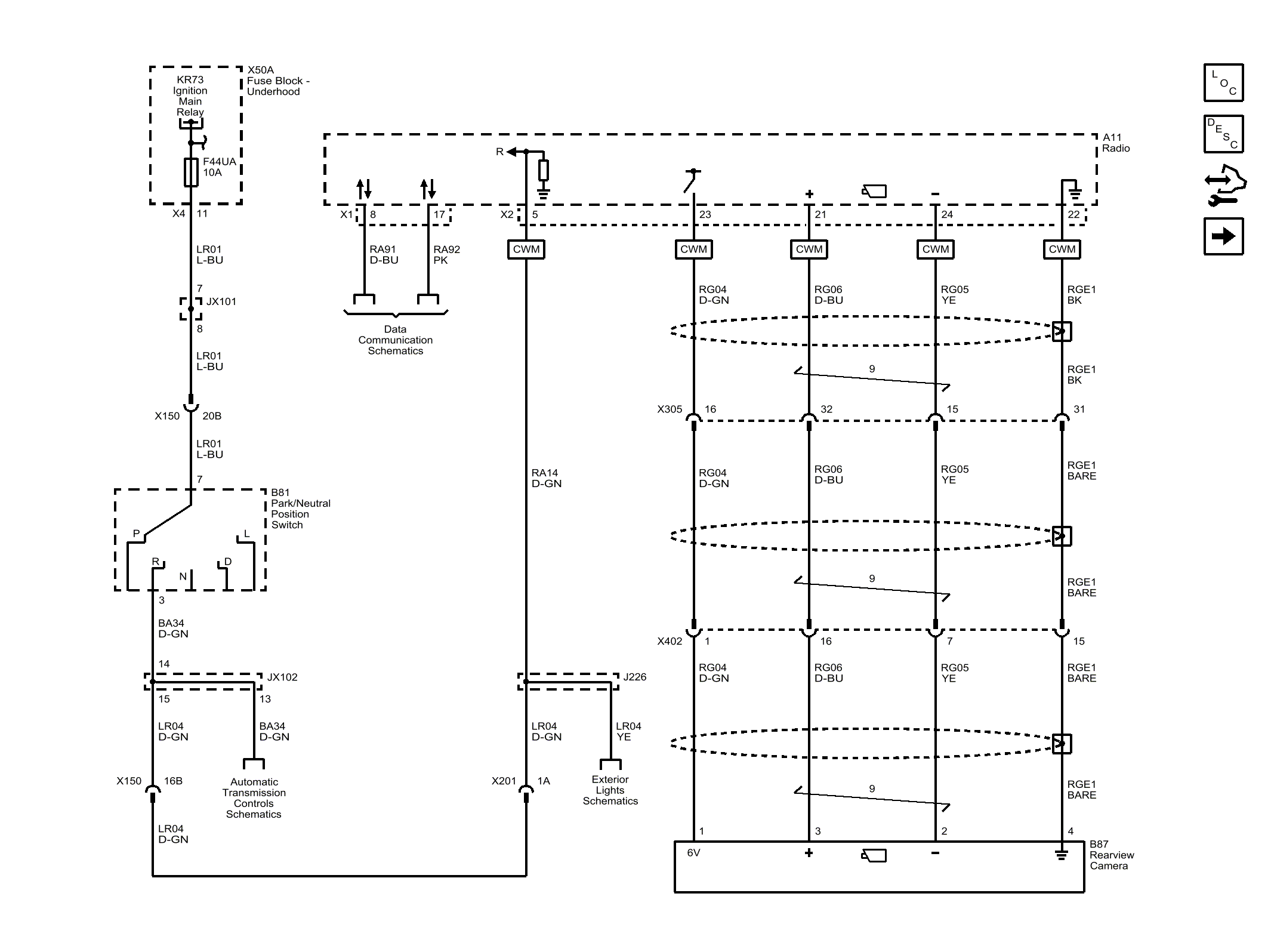

Rearview Camera (UVC)
Courtesy of
