Theft Deterrent Module Replacement

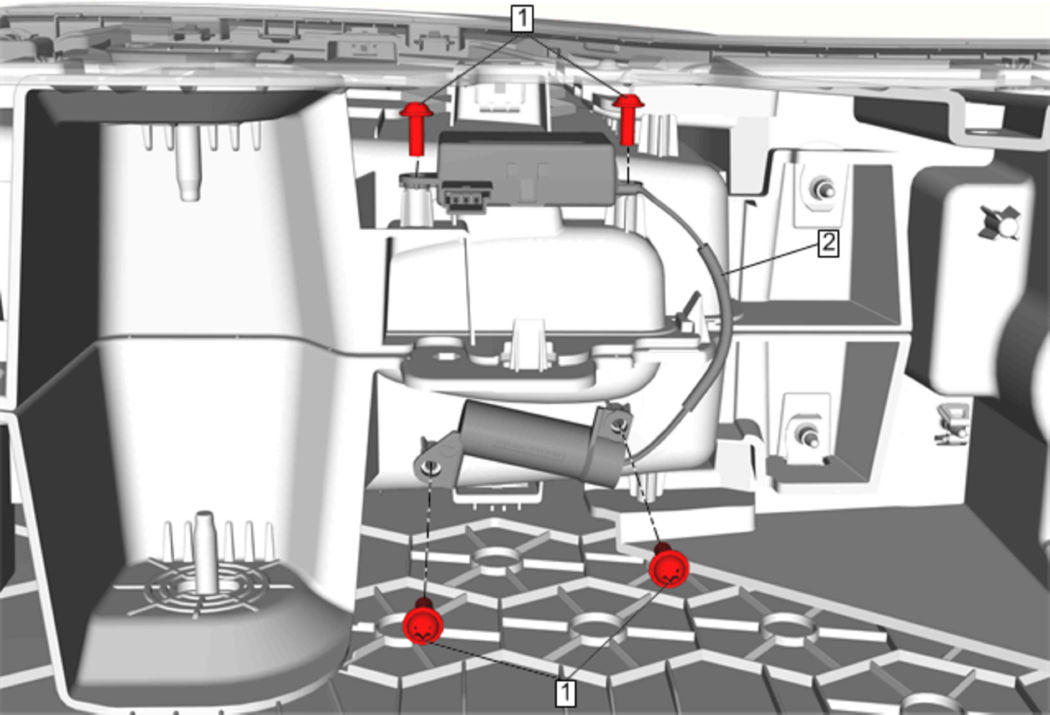

Fig 1: Theft Deterrent Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Floor Console Replacement Rear Console Side Panel-Right - Remove - Front Floor Console Cup Holder Replacement
1	Theft Deterrent Module screw CAUTION: Fastener Caution Tighten 1 N.m (9 lb in)
2	Theft Deterrent Module Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Theft Deterrent Module screw

CAUTION:

Tighten
1 N.m (9 lb in)

Theft Deterrent Module
Procedure
Disconnect the electrical connector.
