Chevrolet
>>
2016
>>
Suburban 3500 HD LS
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System And Remote Functions
>>
Schematic Wiring Diagrams
>>
Remote Function Wiring Schematics
>>
Keyless Entry - Passive, and Keyless Start
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Keyless Entry - Passive, and Keyless Start

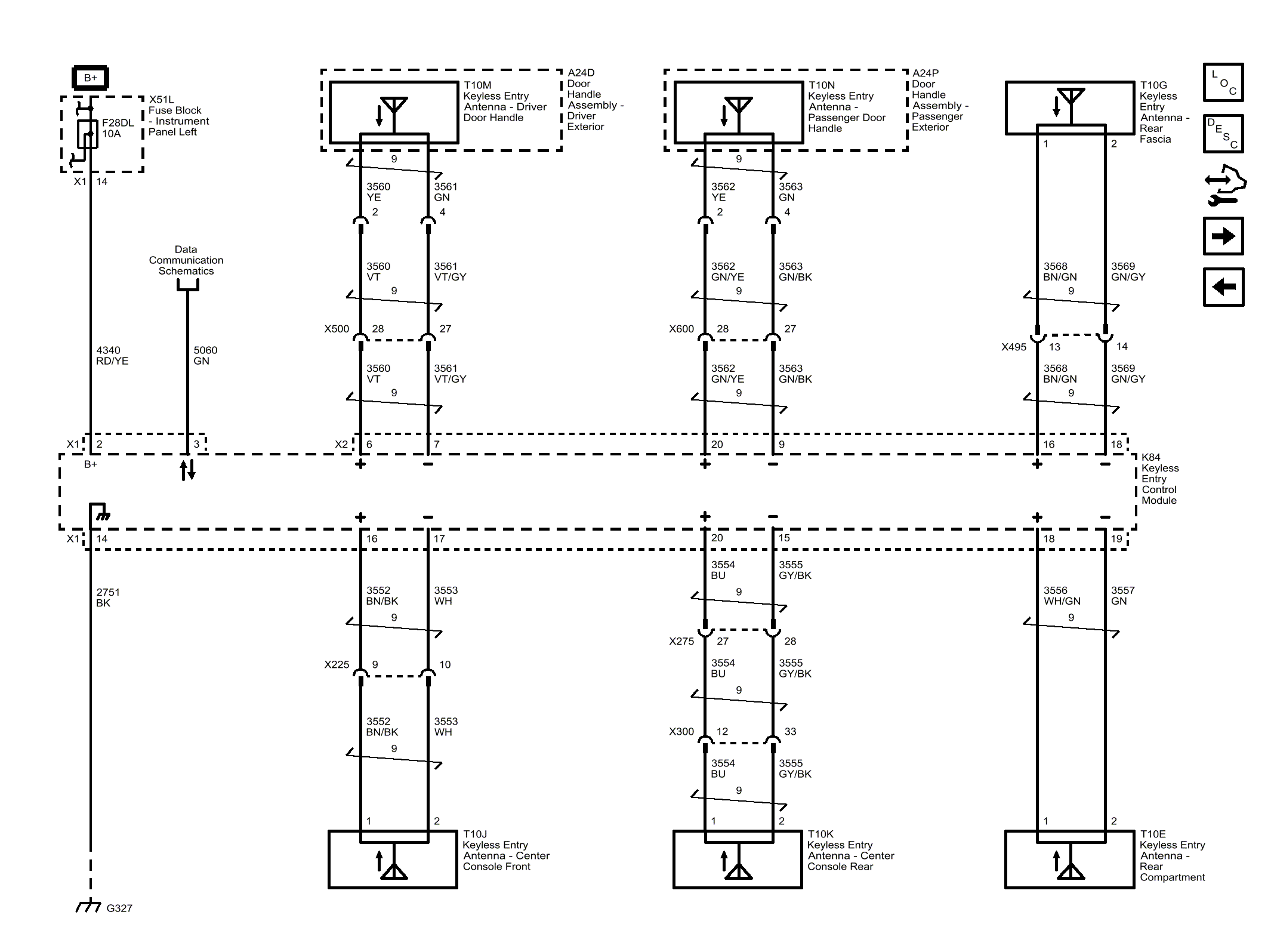

Fig 1: Keyless Entry - Passive, and Keyless Start
Courtesy of GENERAL MOTORS COMPANY
