Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install all necessary components on the instrument panel assembly.

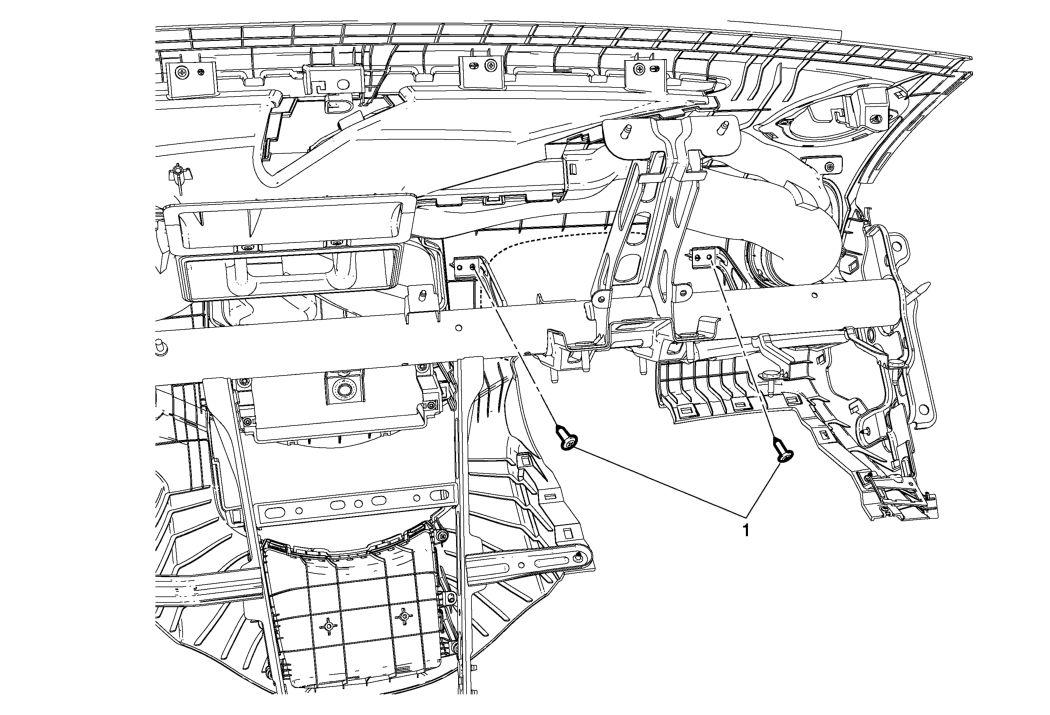

    Fig 1: Instrument Panel Screw
    GM2309053Courtesy of GENERAL MOTORS COMPANY
  2. Install the instrument panel assembly on the vehicle.
  3. Install the instrument panel screw (1) behind the I/P of the driver side and tighten to 2.5 N.m (22 lb in).
    CAUTION: Refer to Fastener Caution .
  4. Install the instrument panel screws (3) and tighten to 2.5 N.m (22 lb in).

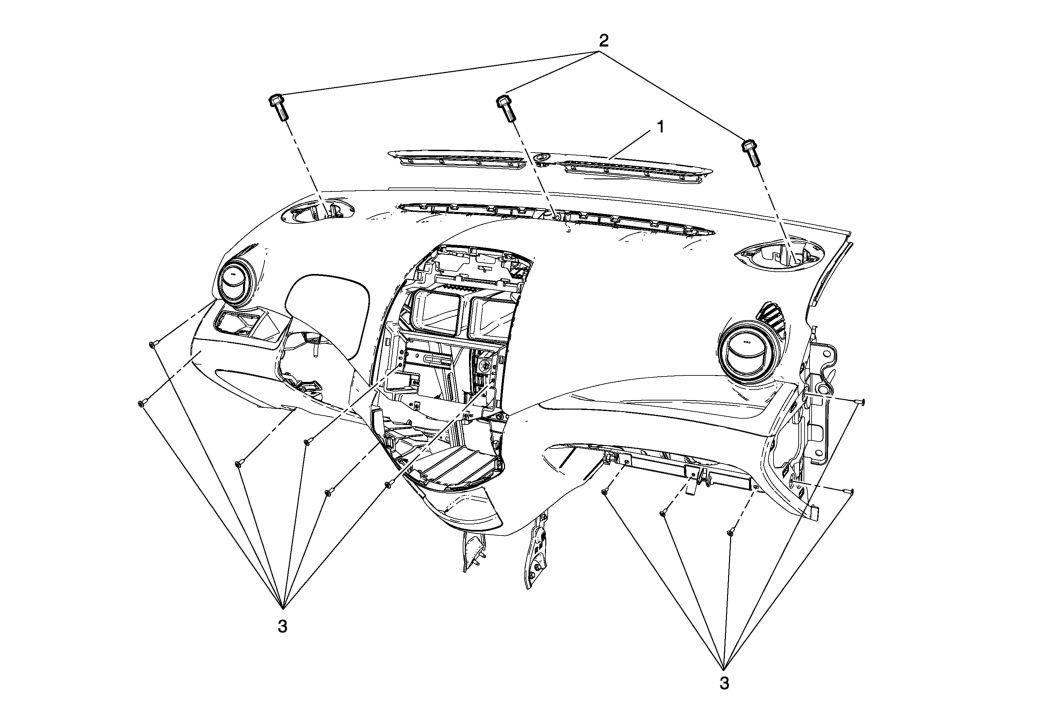

    Fig 2: Instrument Panel Defroster Grille And Screws
    GM2309048Courtesy of GENERAL MOTORS COMPANY
  5. Install the instrument panel bolts (2) and tighten to 5 N.m (44 lb in).
  6. Install the instrument panel defroster grille (1).
  7. Install both front speakers. Refer to Radio Front Speaker Replacement .
  8. Connect the passenger airbag module electrical connector.

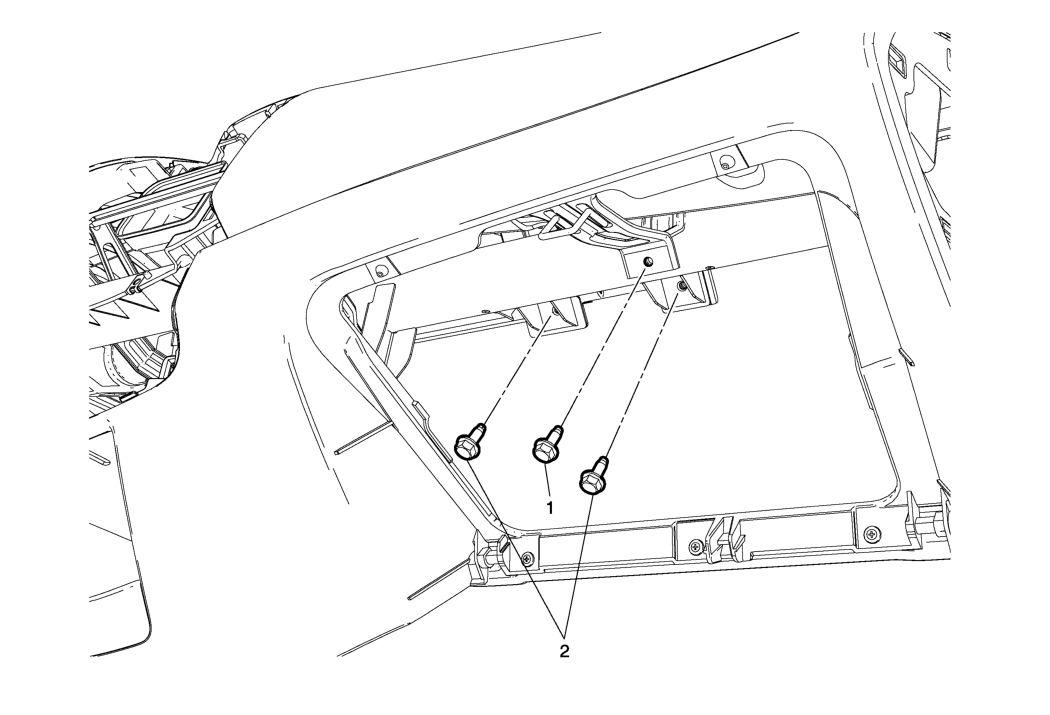

    Fig 3: Instrument Panel Bolts
    GM2309404Courtesy of GENERAL MOTORS COMPANY
  9. Install the instrument panel bolts (1) and tighten to 2.5 N.m (22 lb in).
  10. Install the passenger airbag module bracket bolts (2) and tighten to 11.5 N.m (8 lb ft).
  11. Install the steering wheel. Refer to Steering Wheel Replacement .

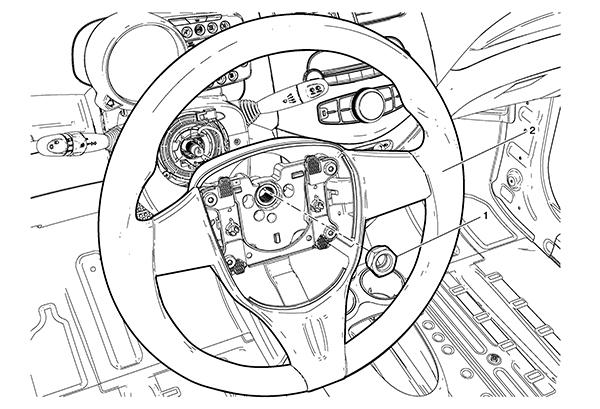

    Fig 4: Steering Wheel
    GM2308576Courtesy of GENERAL MOTORS COMPANY
  12. Install the steering column opening filler. Refer to Steering Column Opening Filler Replacement .
  13. Install the instrument panel multifunction switch. Refer to Instrument Panel Multifunction Switch Replacement .
  14. Install the windshield garnish molding. Refer to Windshield Garnish Molding Replacement .
  15. Install the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
  16. Install both instrument panel outer trim covers. Refer to Instrument Panel Outer Trim Cover Replacement .
  17. Install the instrument cluster. Refer to Instrument Cluster Replacement .
  18. Install the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
  19. Install the heater and air conditioning control. Refer to Heater and Air Conditioning Control with Cable Control Replacement (Left Hand Drive) and Heater and Air Conditioning Control with Cable Control Replacement (Right Hand Drive) .
  20. Install the radio assembly. Refer to Radio Replacement .
  21. Install the floor console assembly. Refer to Front Floor Console Replacement .
  22. Enable the SIR system. Refer to SIR Disabling and Enabling .
