Windshield Wiper Motor Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

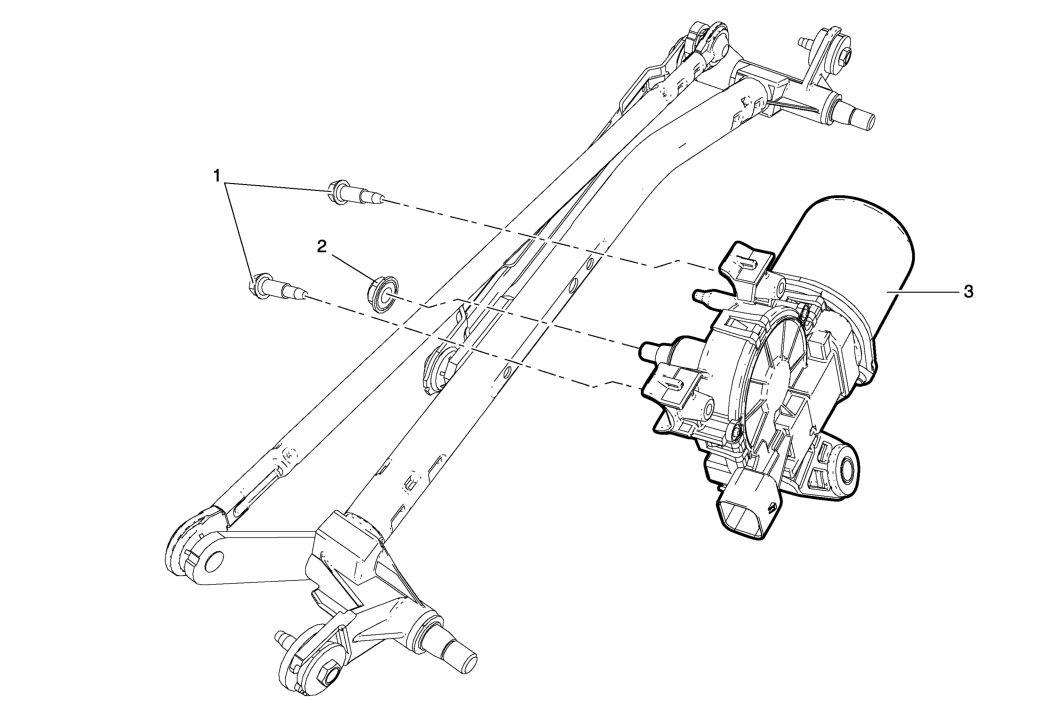

Fig 1: Windshield Wiper Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the windshield wiper arms. Refer to Windshield Wiper Arm Replacement . Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement . Remove the windshield wiper transmission. Refer to Windshield Wiper Transmission Replacement .
1	Windshield Wiper Motor Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 13 N.m (10 lb ft)
2	Windshield Wiper Motor Nut (Qty: 1) Tighten 23 N.m (17 lb ft)
3	Windshield Wiper Motor Assembly
