Windshield Wiper Blade Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

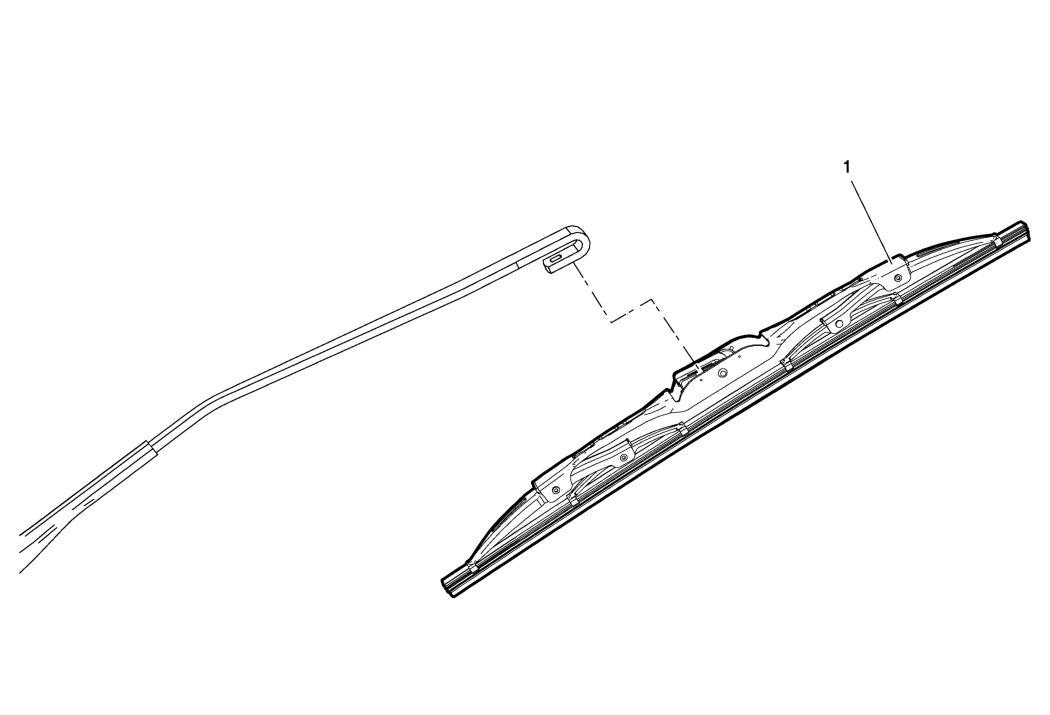

Fig 1: Windshield Wiper Blade

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise the wiper arm up off the windshield.
1	Windshield Wiper Arm Blade Assembly Procedure Push inward the square tab at the center top side of the wiper blade. Rotate the wiper blade downward slightly. Carefully release the wiper arm back to the windshield. TIP: Discard if rubber appears worn or does not wipe the windshield clean.

Callout

Component Name

Preliminary Procedure
Raise the wiper arm up off the windshield.

Windshield Wiper Arm Blade Assembly

Procedure

Push inward the square tab at the center top side of the wiper blade.
Rotate the wiper blade downward slightly.
Carefully release the wiper arm back to the windshield.

TIP: Discard if rubber appears worn or does not wipe the windshield clean.
