Chevrolet
>>
2016
>>
Spark EV
>>
Repair and Diagnosis
>>
Hybrid/Electric Powertrain
>>
Electric Converters and Controllers
>>
Hybrid/EV Control System
>>
Schematic Wiring Diagrams
>>
Hybrid/EV Controls Wiring Schematics
>>
14V Power Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

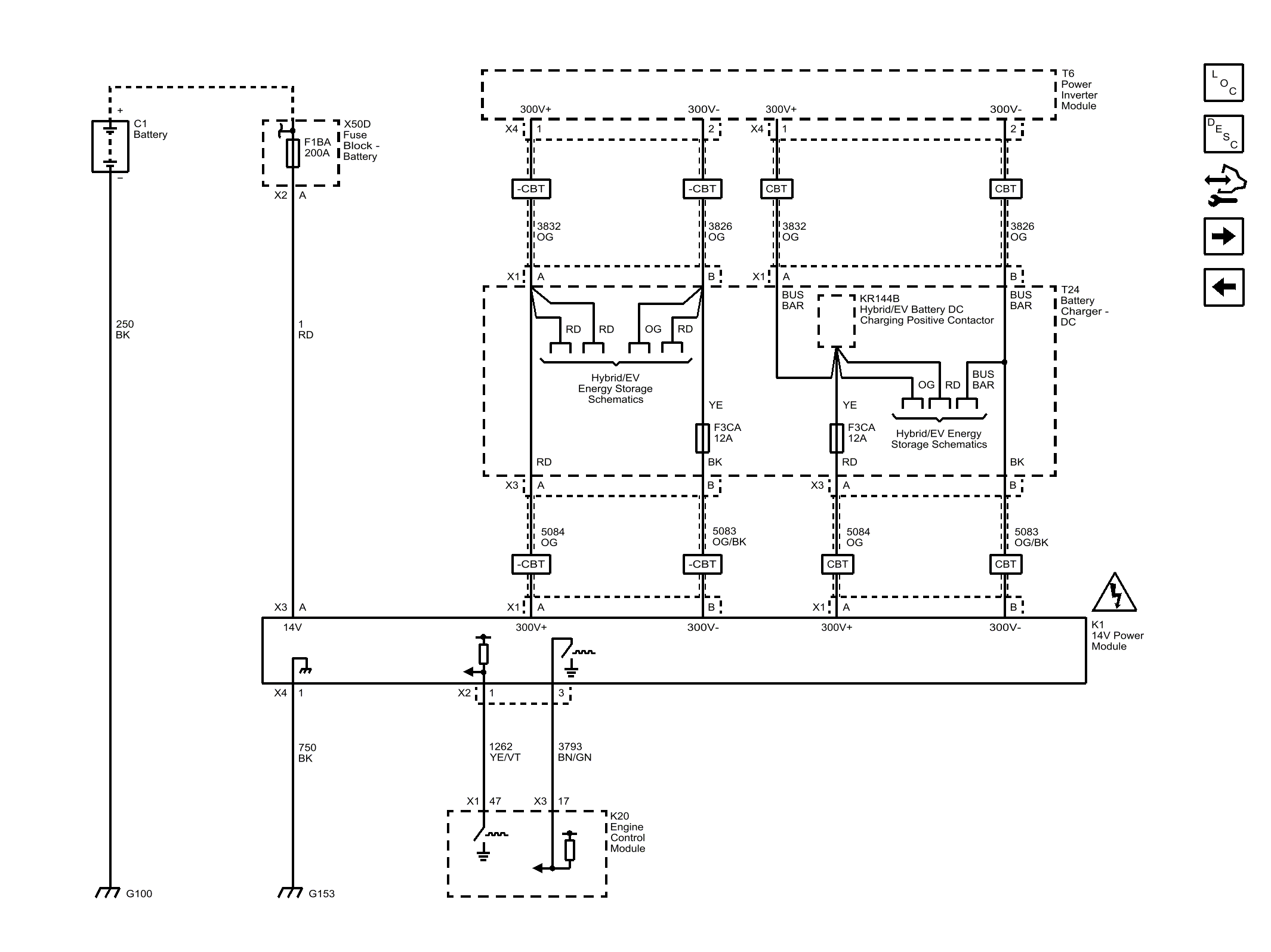

14V Power Module
Fig 1: 14V Power Module
Courtesy of GENERAL MOTORS COMPANY
