Liftgate Latch Striker Replacement

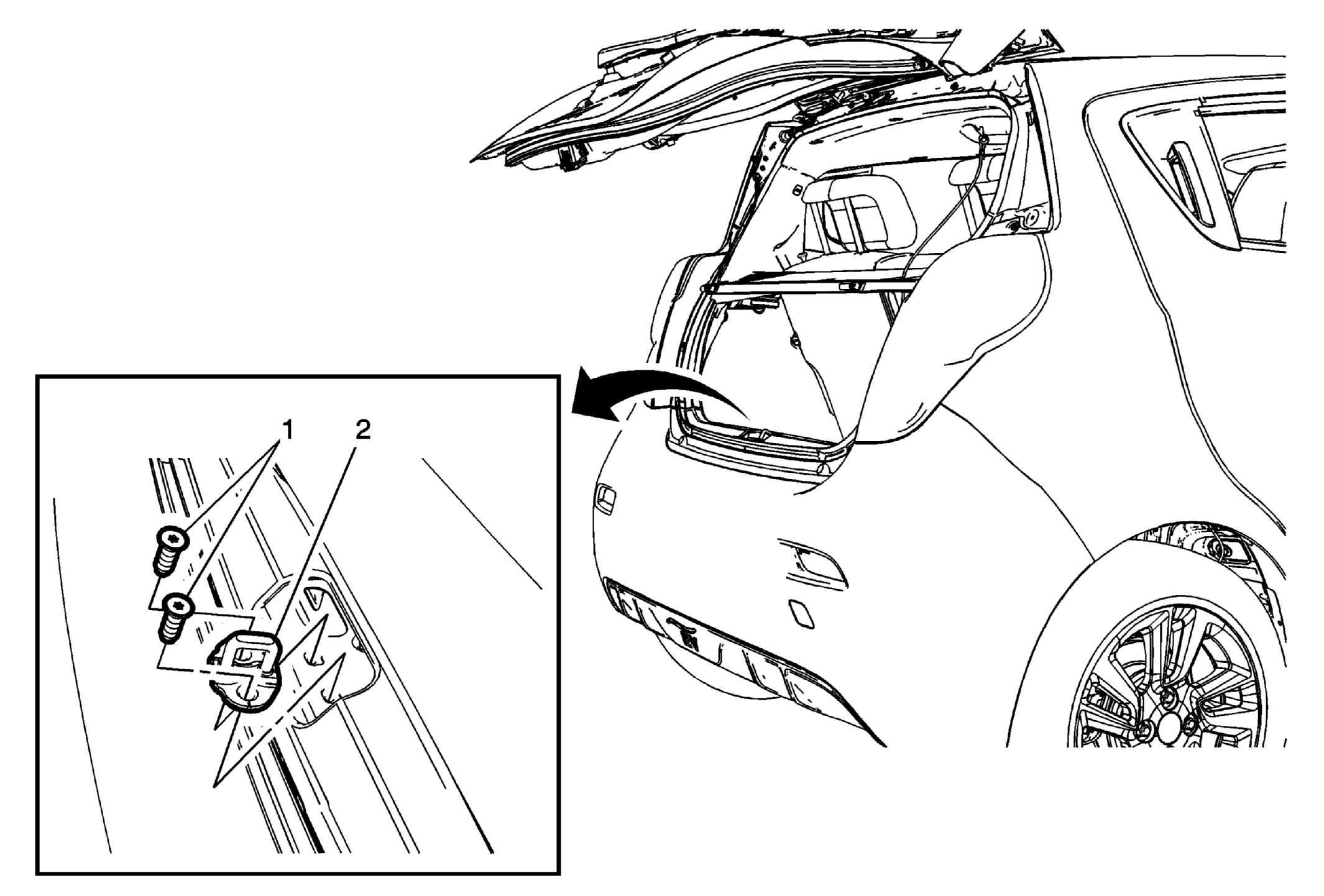

Fig 1: Liftgate Latch Striker
GM2966649Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the liftgate.
1 Liftgate Latch Striker Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
20 N.m (15 lb ft)
2 Liftgate Latch Striker
