Installation Procedure

  1. Install the front side door lock cylinder.

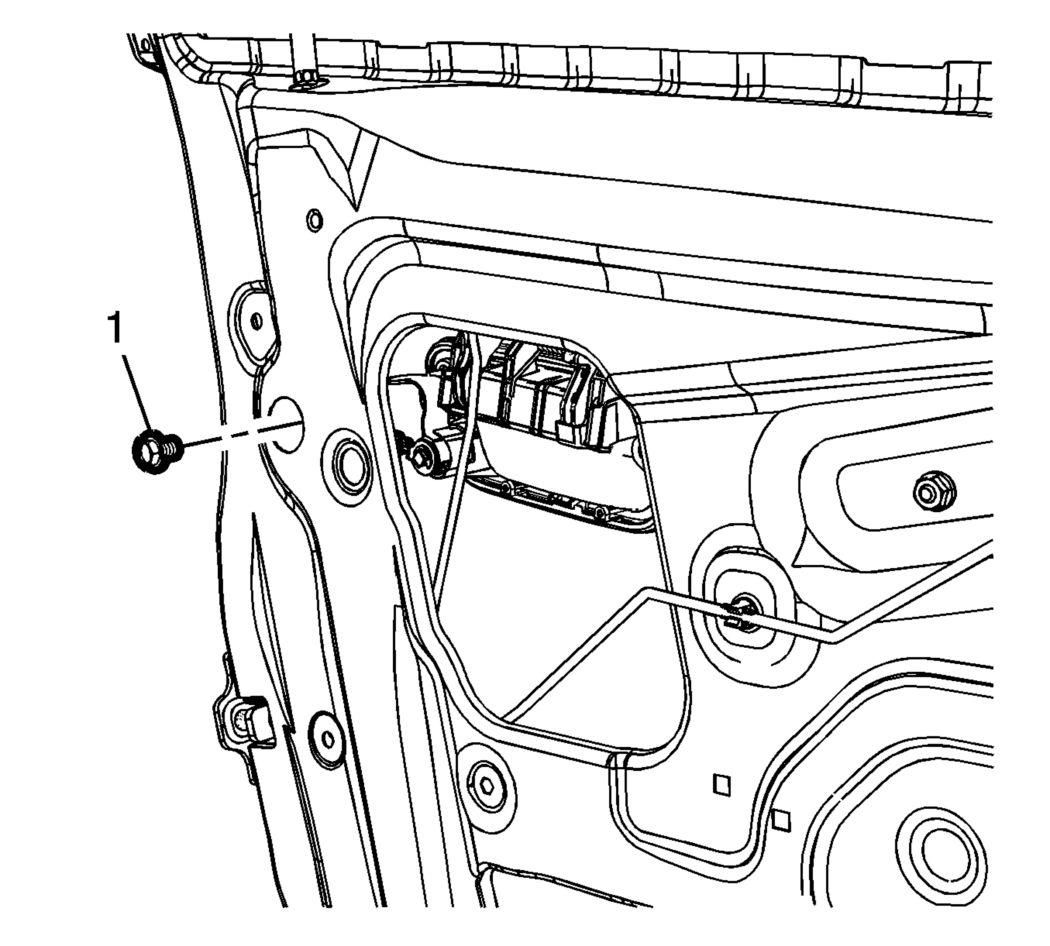

    2. Fig 1: Front Side Door Lock Cylinder Bolt
    GM2309073Courtesy of GENERAL MOTORS COMPANY
  2. Install the front side door lock cylinder bolt (2) and tighten to 4.5 N.m (40 lb in).
  3. Install the front side door lock rod holder.
