Rearview Camera (UVC with IO4, IO5 or IO6)

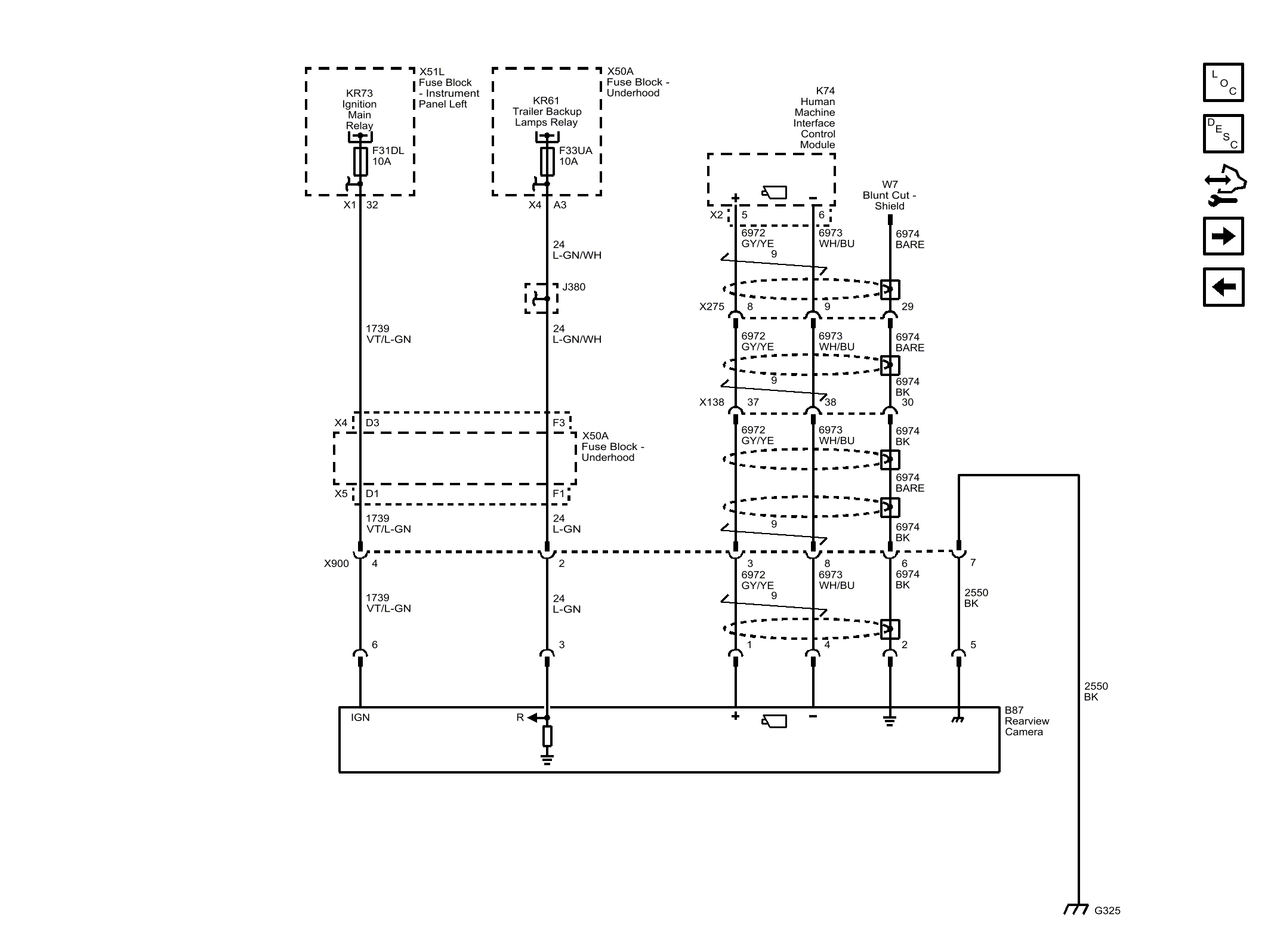

Fig 1: Rearview Camera (UVC with IO4, IO5 or IO6)
GM4210304Courtesy of GENERAL MOTORS COMPANY
