Electrical Component Locator - Ground Views
>>
Ground Views
>>
G202 and G302
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
G202 and G302
G202 and G302
Items
1. G202
2. G302

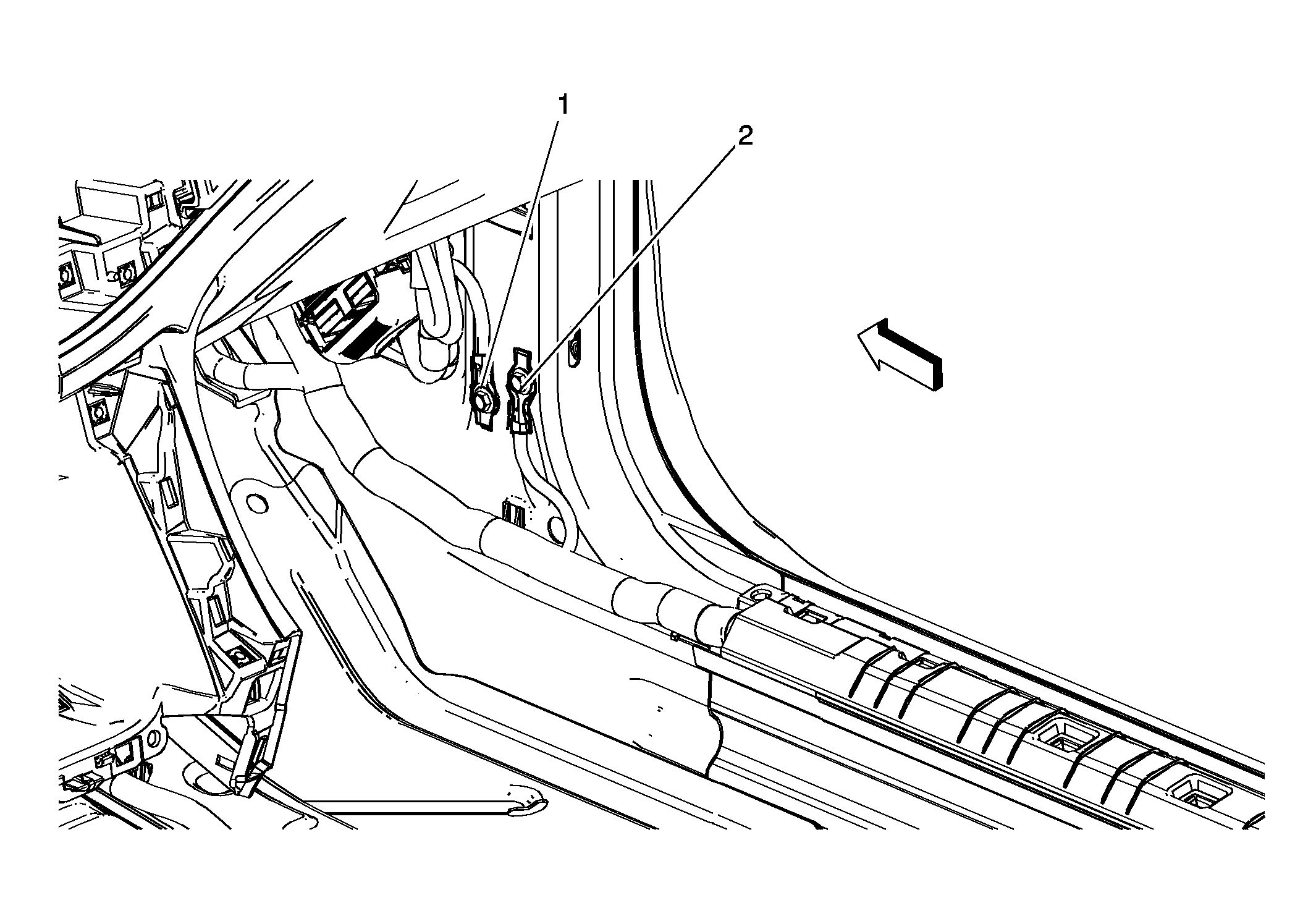

Fig 1: G202 and G302
Courtesy of GENERAL MOTORS COMPANY
