Installation Procedure

  1. Install the rear side door window switch (1).

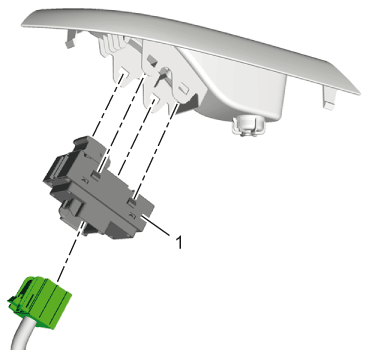

    Fig 1: Rear Side Door Window Switch
    GM4421910Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  2. Install the rear side door armrest pull cup (2).
    Fig 2: Rear Side Door Armrest Pull Cup And Bolt
    GM4297777Courtesy of GENERAL MOTORS COMPANY
  3. Install the rear side door armrest pull cup bolt (1) and tighten to 2.5 N.m (22 lb in).
  4. Close the bolt cap.
