Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

Loosen the steering linkage inner tie rod nut (1).

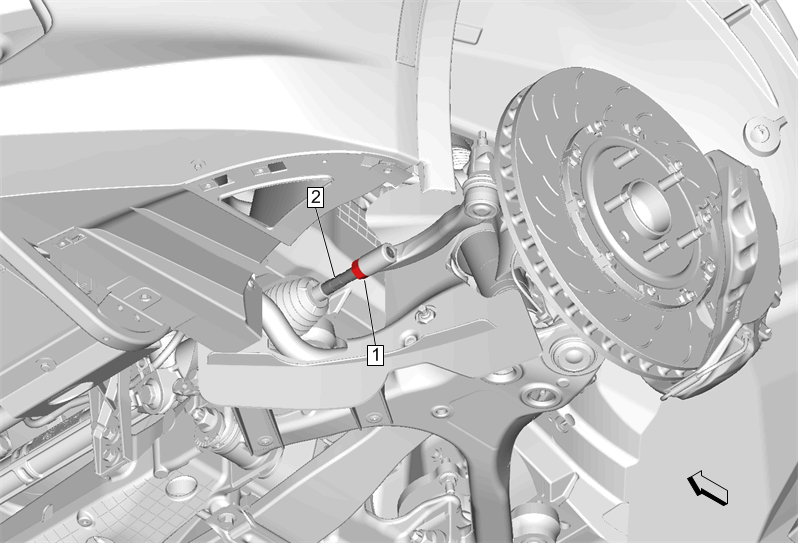

Fig 1: Steering Linkage Inner Tie Rod Nut
Courtesy of GENERAL MOTORS COMPANY
Rotate the inner tie rod (2) to the required toe specification setting. Refer to Wheel Alignment Specifications
Tighten the steering linkage inner tie rod nut to 75 N.m (55 lb ft).
CAUTION: Refer to Fastener Caution .
The steering angle sensor must be re-centered. Refer to Steering Angle Sensor Centering
