Subsystem References (2 of 3)

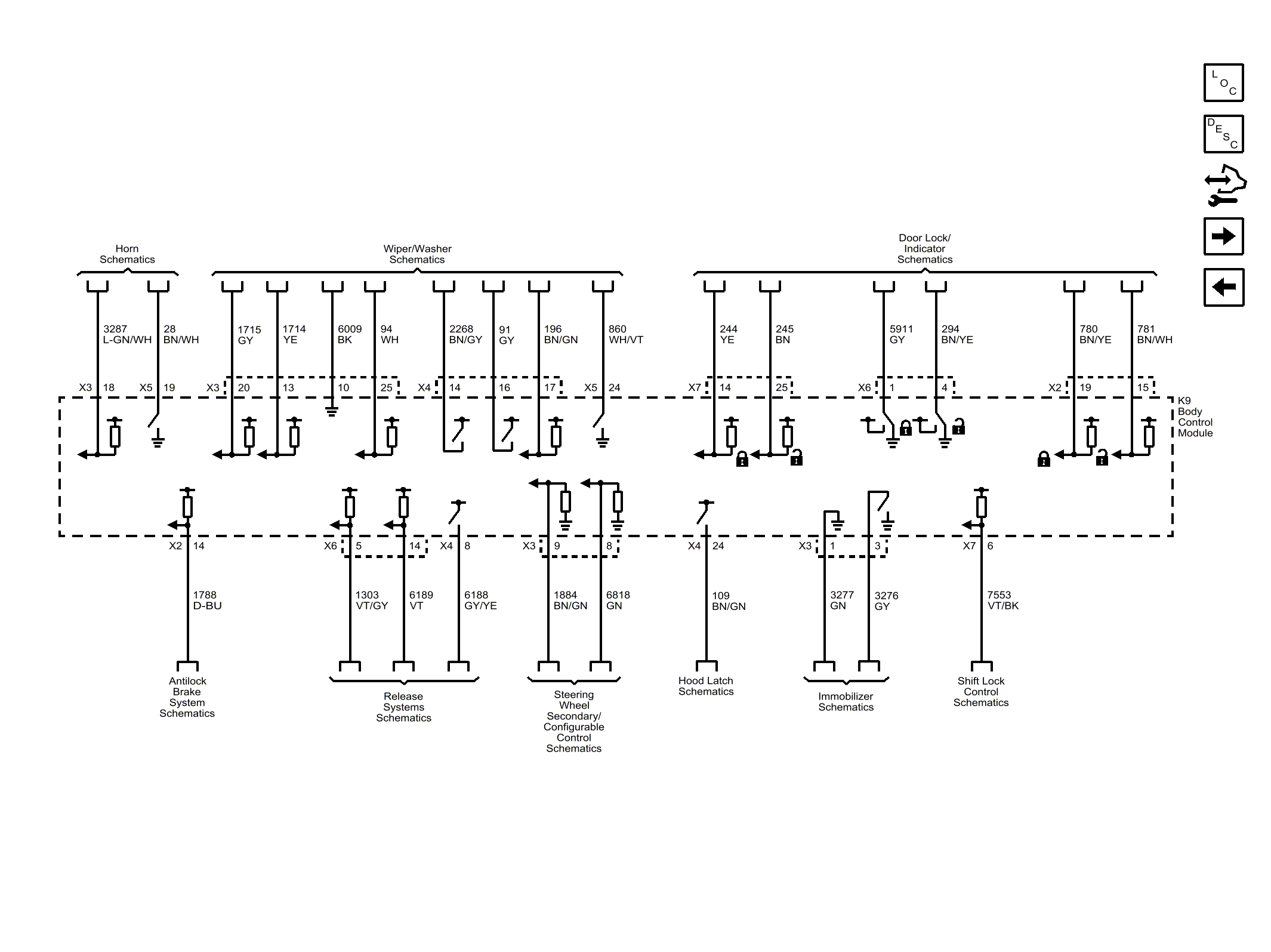

Fig 1: Subsystem References (2 of 3)
Courtesy of GENERAL MOTORS COMPANY
