Installation Procedure

Install the evaporative emission pipe (1) to the vehicle.

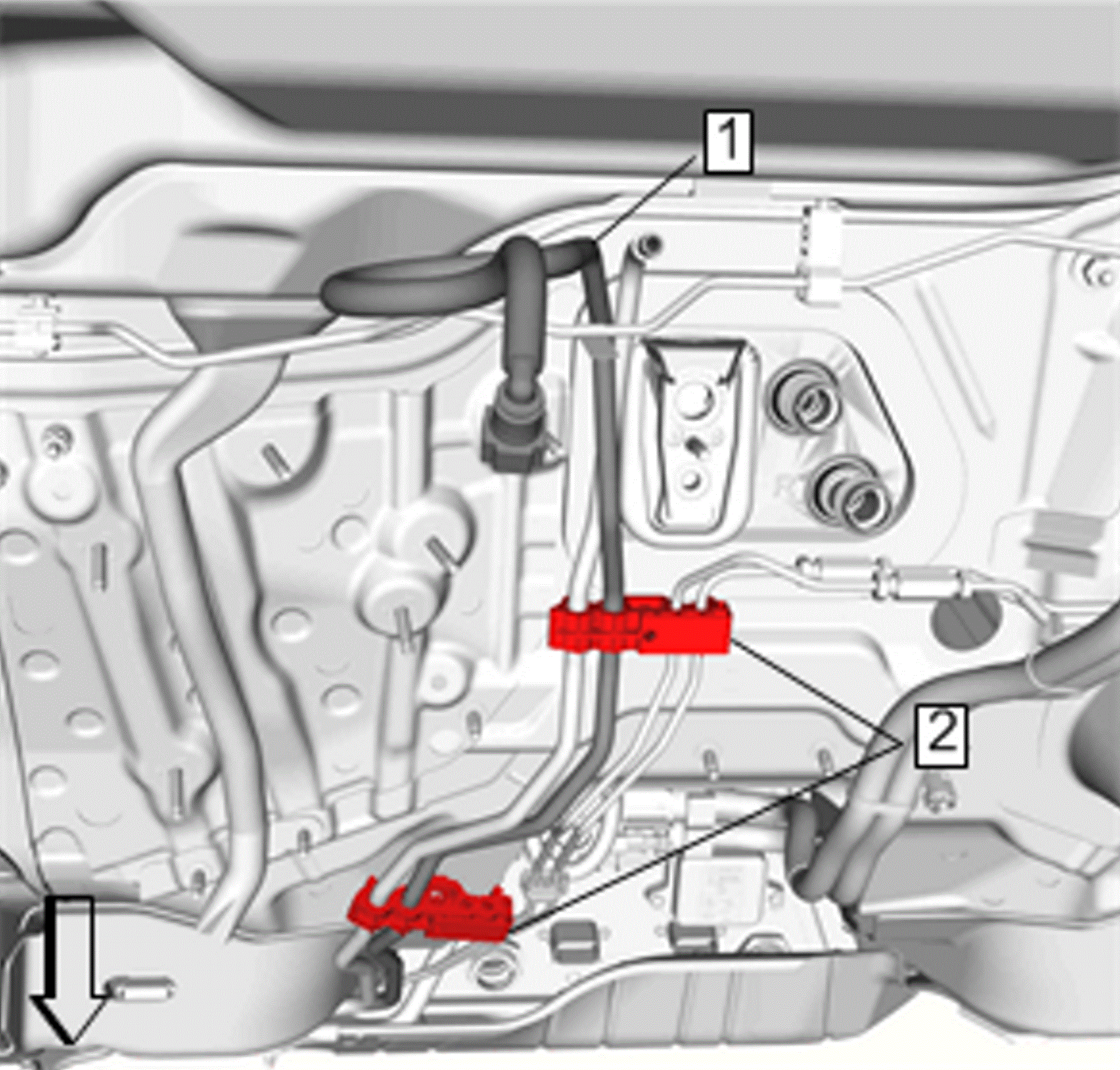

Fig 1: Locating Plastic Clips
Courtesy of GENERAL MOTORS COMPANY
Connect the evaporative emission pipe (1) to the evaporative emission canister. Refer to Plastic Collar Quick Connect Fitting Service .
Install the evaporative emission pipe (1) to the plastic clips (2).
Install the evaporative emission pipe (1) to the plastic clips (2).

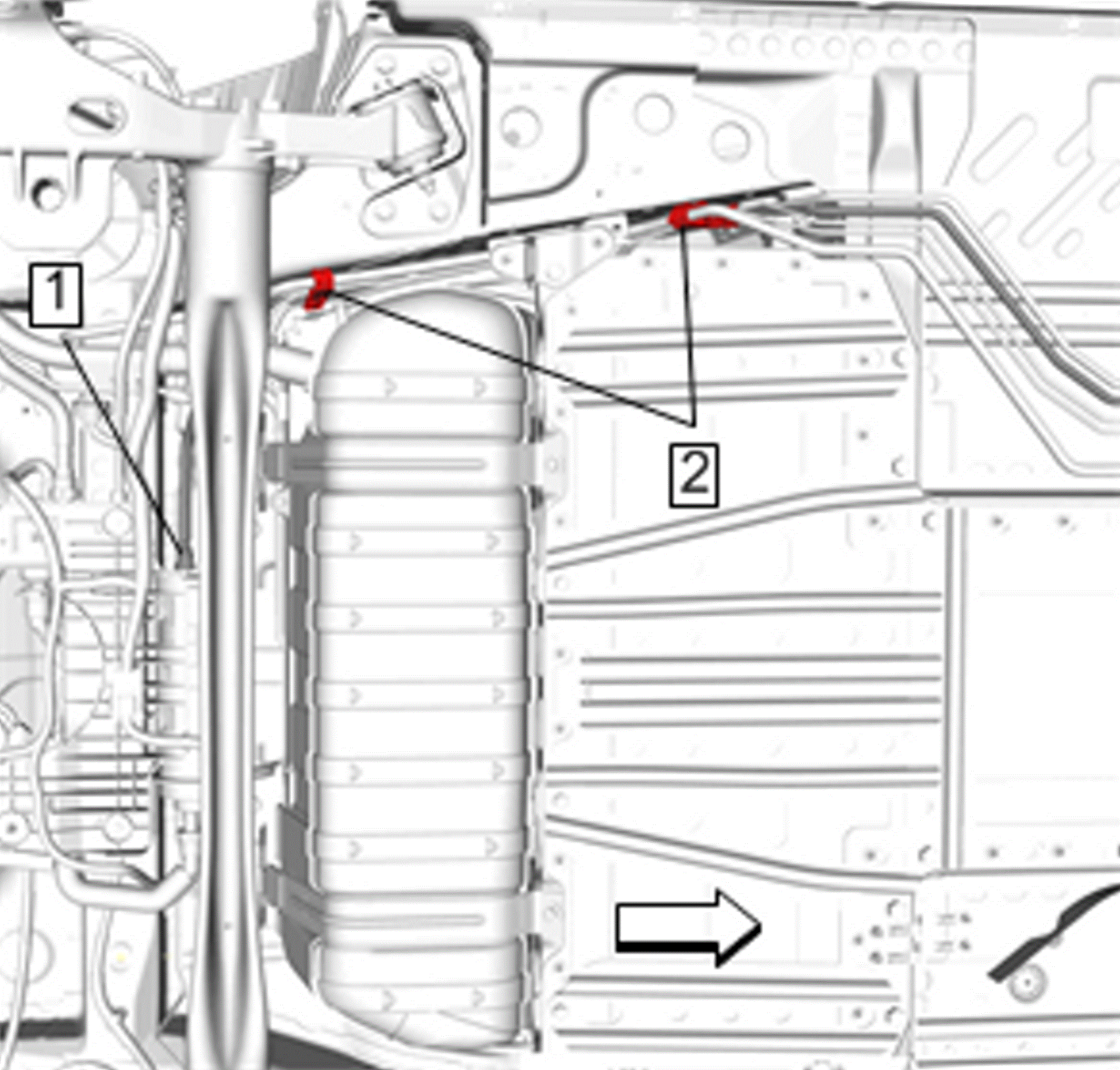

Fig 2: Identifying Plastic Clips
Courtesy of GENERAL MOTORS COMPANY
Install the evaporative emission pipe (1) to the engine compartment bulkhead plastic clips (2).

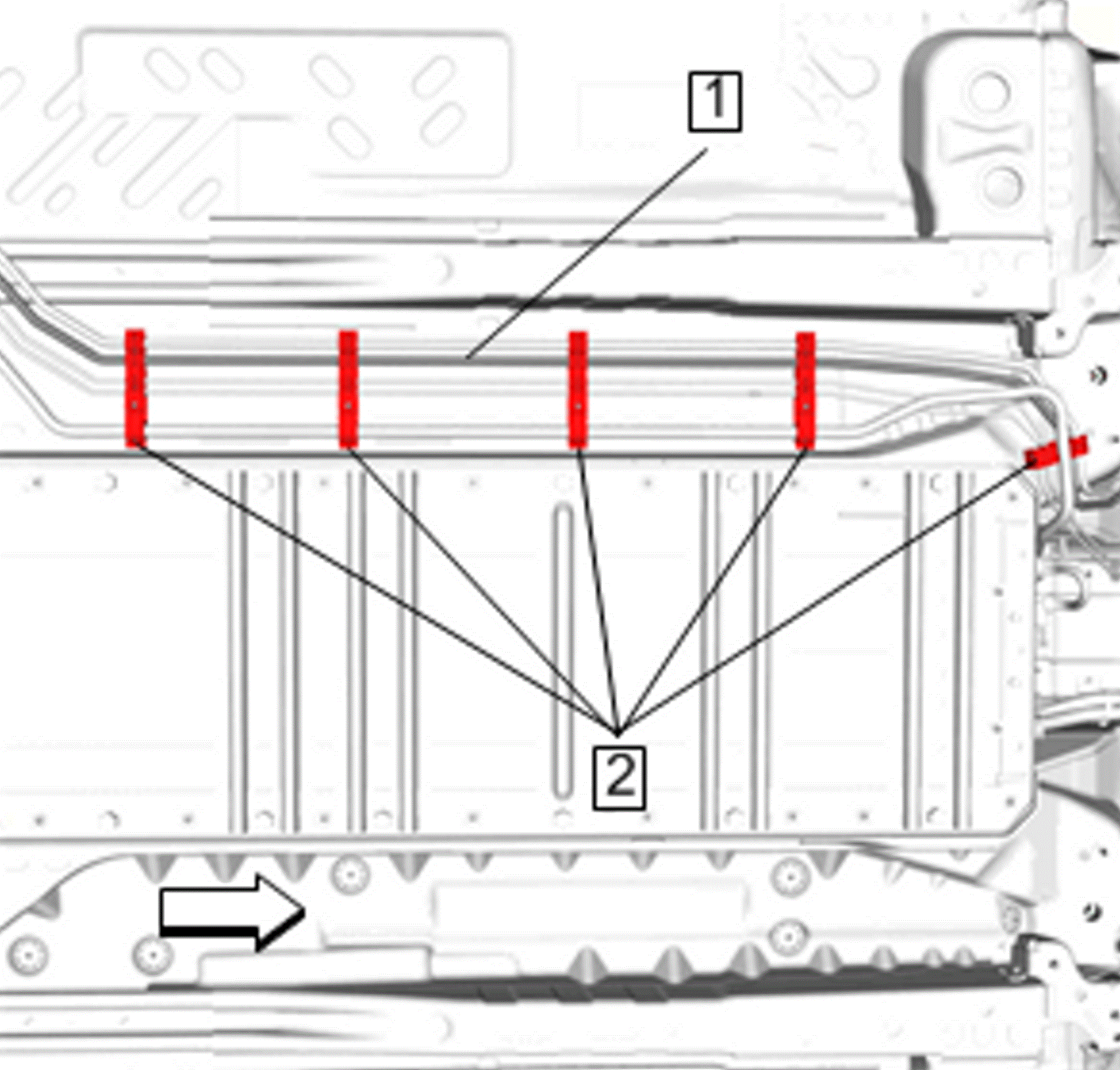

Fig 3: Identifying Engine Compartment Bulkhead Plastic Clips
Courtesy of GENERAL MOTORS COMPANY
Connect the evaporative emission pipe (1) to the evaporative emission canister purge solenoid valve. Refer to Plastic Collar Quick Connect Fitting Service .

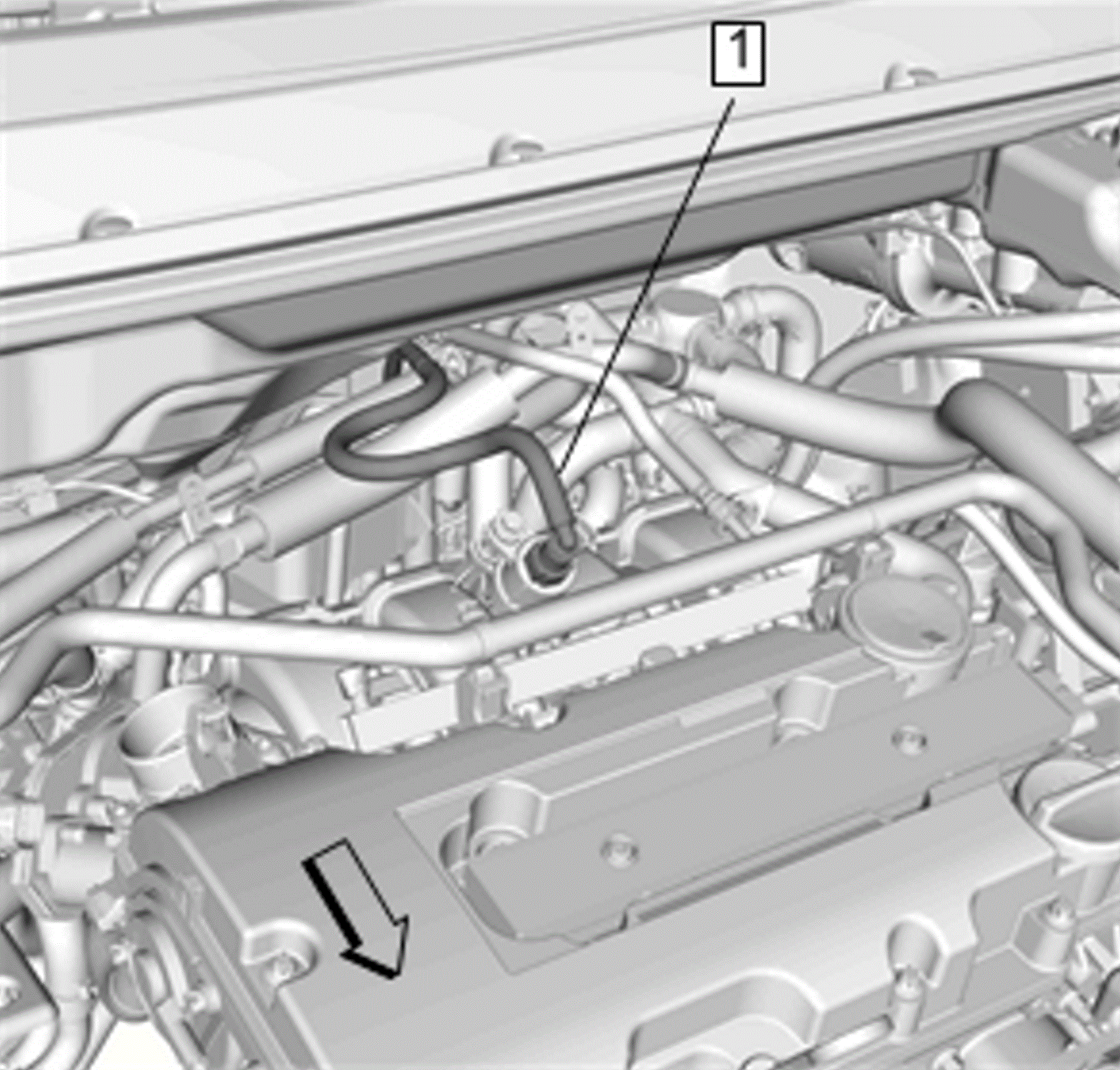

Fig 4: Identifying Evaporative Emission Pipe
Courtesy of GENERAL MOTORS COMPANY
Install the drivetrain and front suspension frame. Refer to Drivetrain and Front Suspension Frame Replacement (Volt) .
