Battery State of Charge
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Battery State of Charge

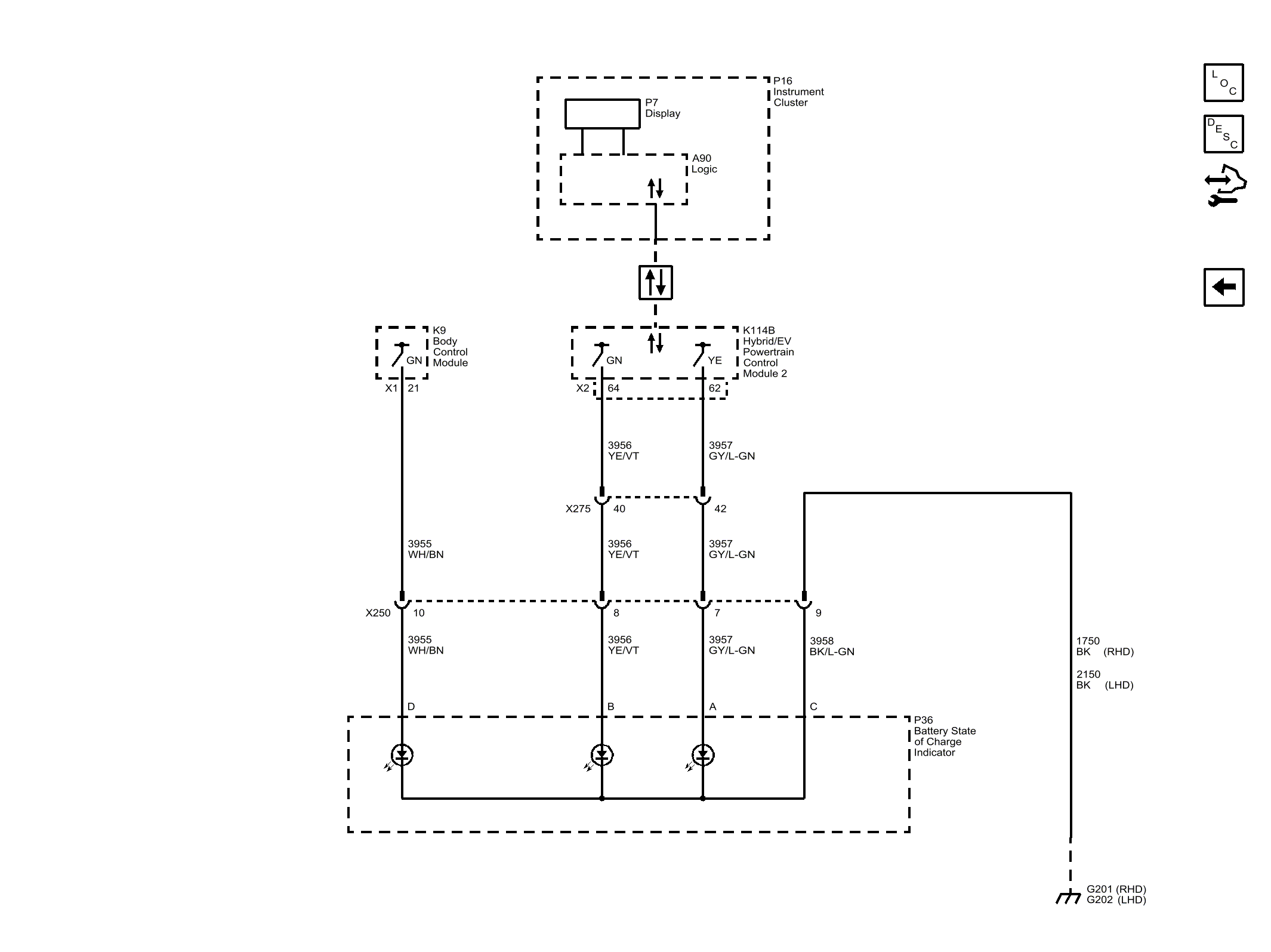

Fig 1: Battery State of Charge
Courtesy of GENERAL MOTORS COMPANY
