Rear Closure Hands Free Module Replacement (Chevrolet)

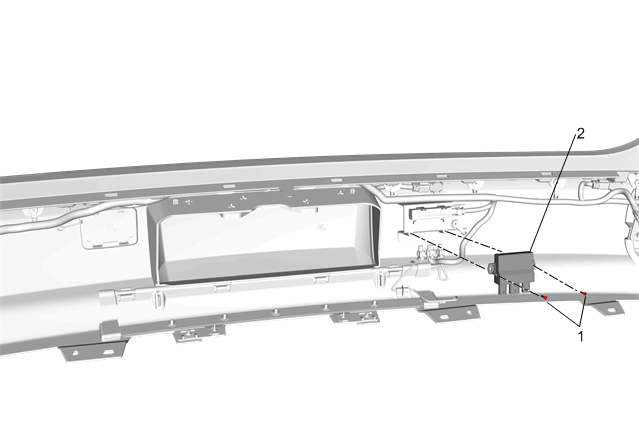

Fig 1: Rear Closure Hands Free Module (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear fascia. Refer to Rear Bumper Fascia Replacement (Chevrolet, GMC) Place the bumper fascia face down on a clean protected surface.
1	Rear Closure Hands Free Module Bolt (Qty 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Closure Hands Free Module Procedure Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure

Remove the rear fascia. Refer to Rear Bumper Fascia Replacement (Chevrolet, GMC)
Place the bumper fascia face down on a clean protected surface.

Rear Closure Hands Free Module Bolt (Qty 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Rear Closure Hands Free Module
Procedure
Disconnect the electrical connectors.
