Controlled/Monitored Subsystem References

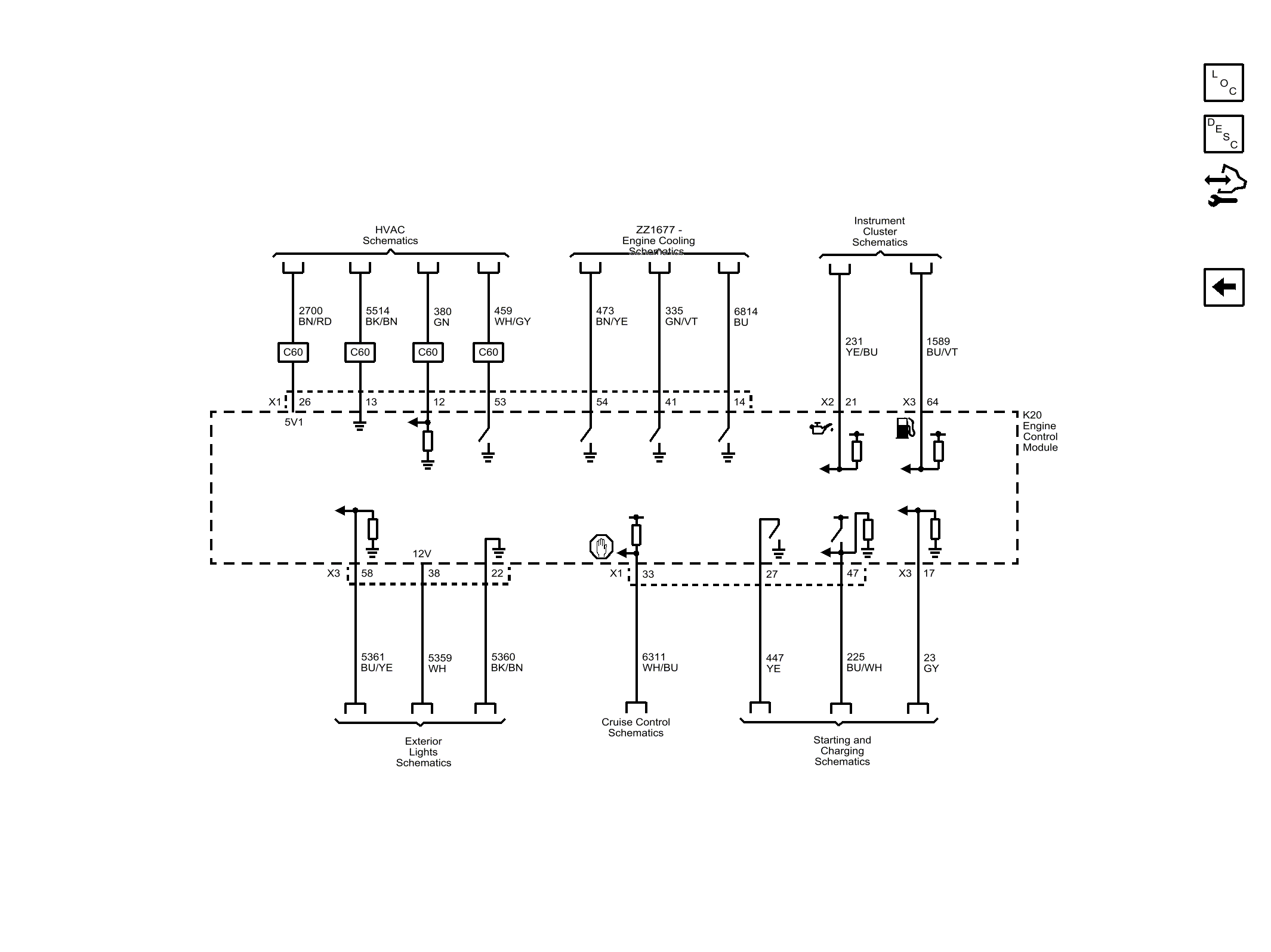

Fig 1: Controlled/Monitored Subsystem References
GM3680728Courtesy of GENERAL MOTORS COMPANY
