Spark LS, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls And Fuel - 1.2L - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics (LFM/LL0+M4M)
>>
Module Power, Ground, Serial Data and MIL
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Module Power, Ground, Serial Data and MIL

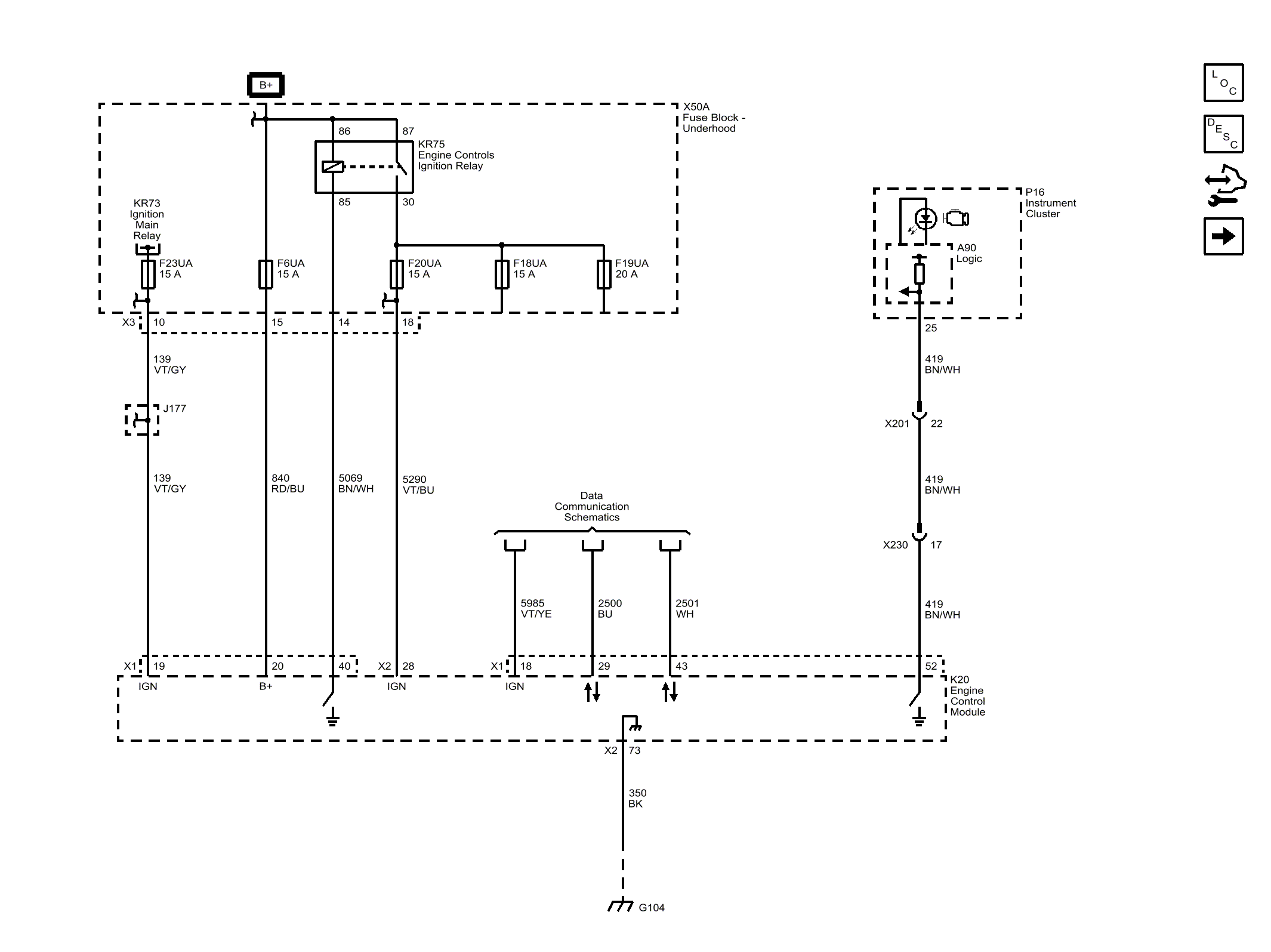

Fig 1: Module Power, Ground, Serial Data and MIL
Courtesy of GENERAL MOTORS COMPANY
