AC Battery Charging
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
AC Battery Charging

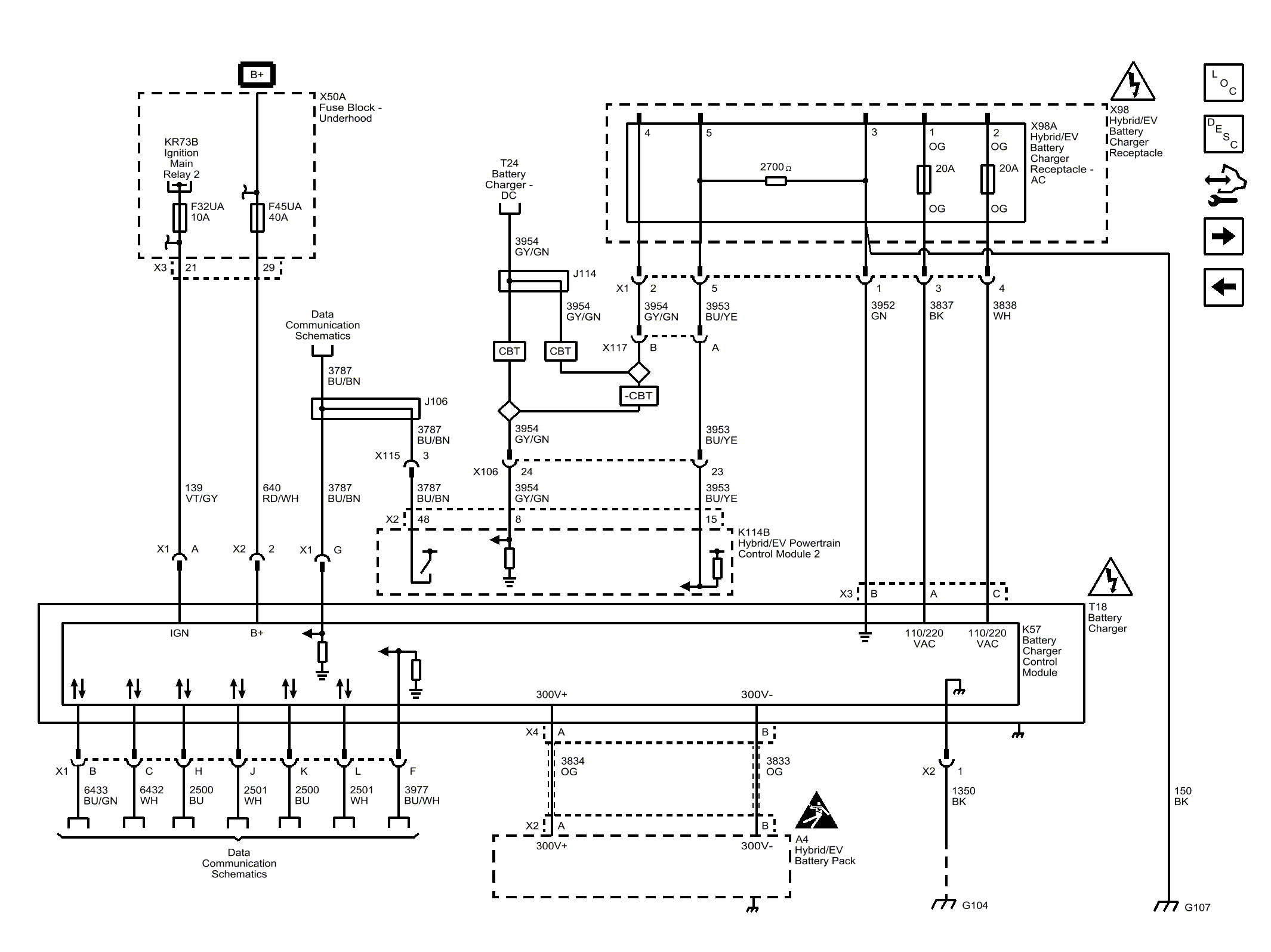

Fig 1: AC Battery Charging
Courtesy of GENERAL MOTORS COMPANY
