Fuel Pump Power Control Module Replacement

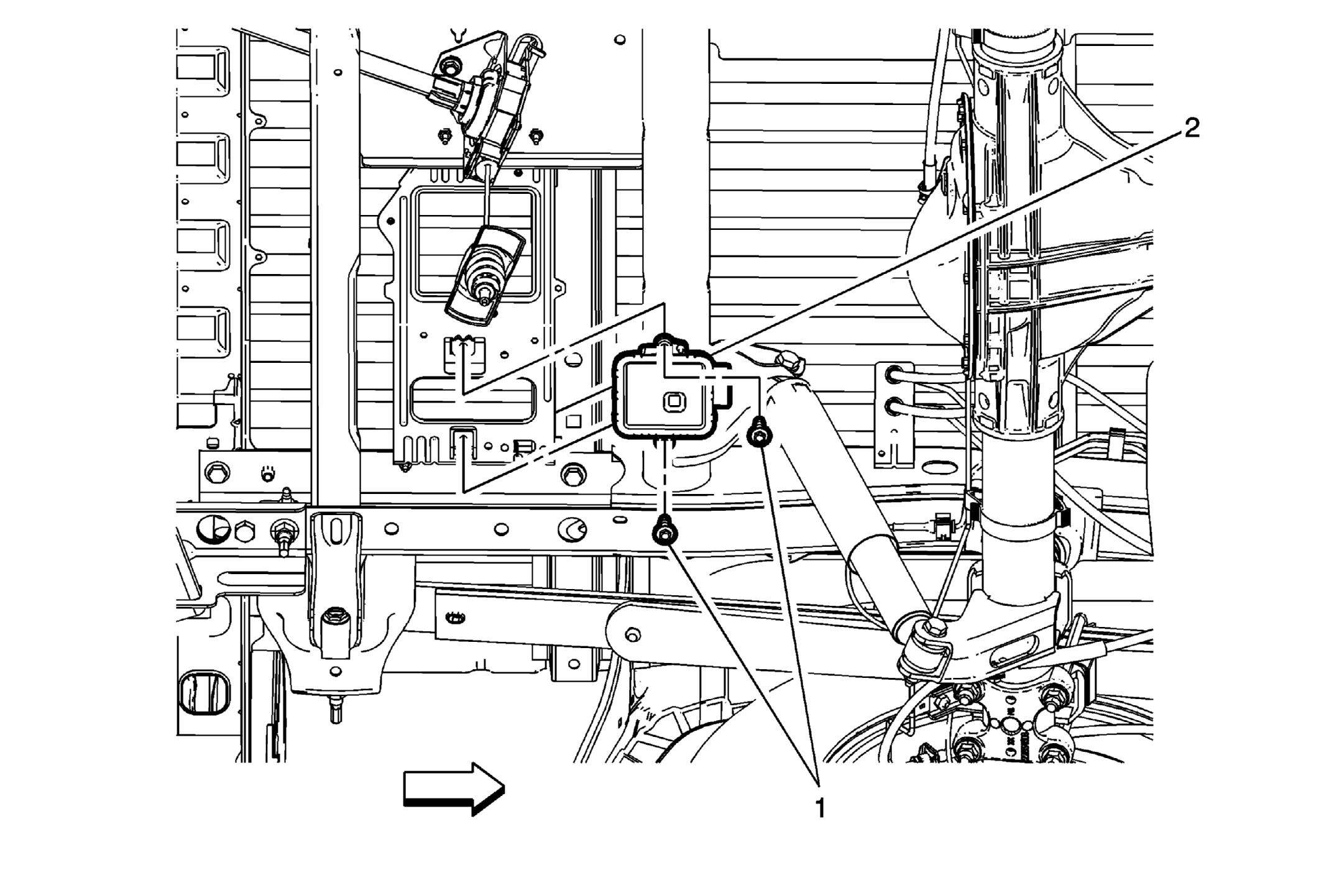

Fig 1: Fuel Pump Power Control Module
GM3272808Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the spare tire. Refer to Spare Wheel Hoist Replacement .
1 Fuel Pump Power Control Module Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Fuel Pump Power Control Module
Procedure
Disconnect the electrical connector.
