Module Power, Ground, and Serial Data

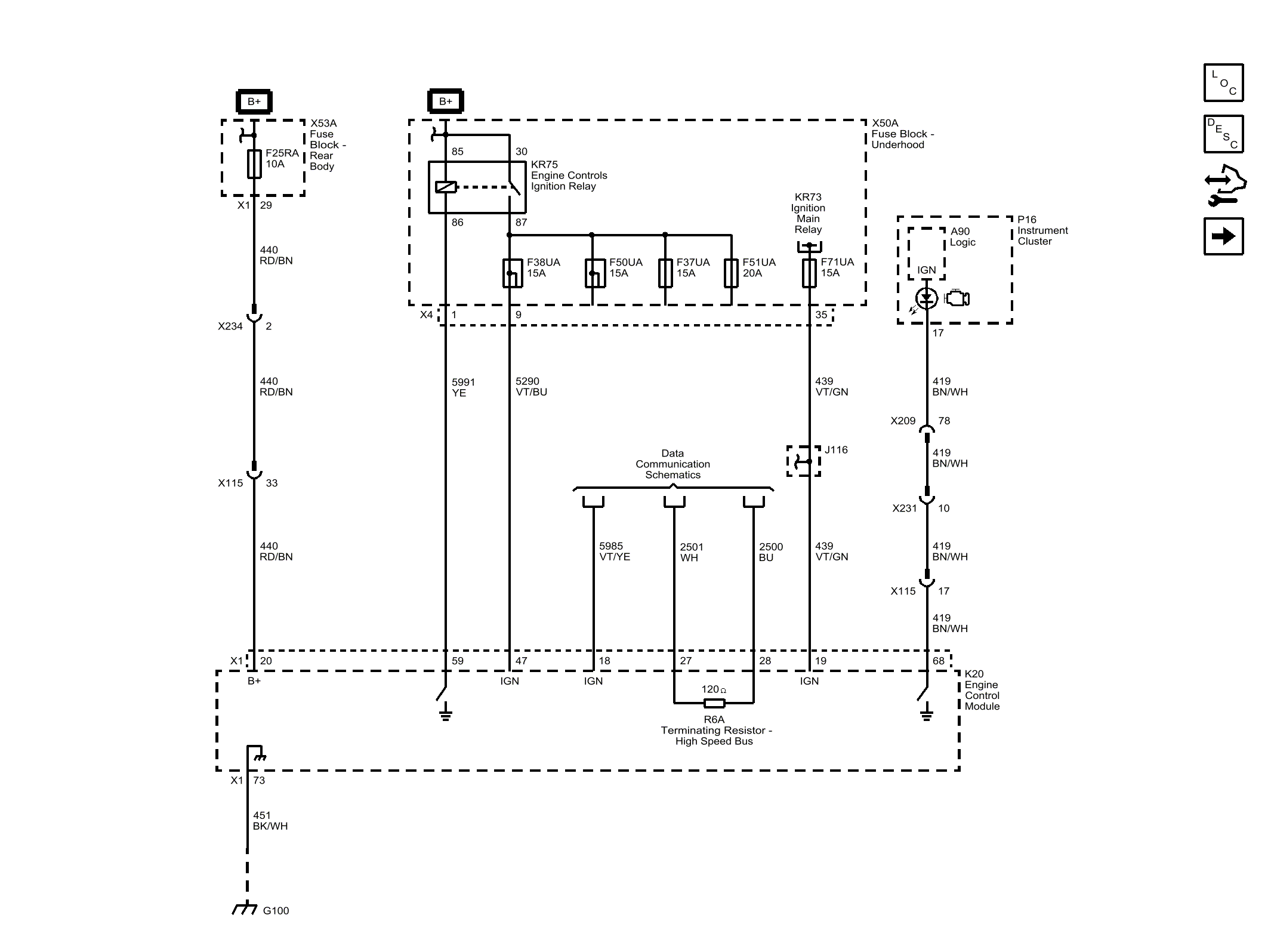

Fig 1: Module Power, Ground, and Serial Data
GM3921646Courtesy of GENERAL MOTORS COMPANY
