Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System And Remote Functions
>>
Schematic Wiring Diagrams
>>
Release Systems Wiring Schematics
>>
Release Systems
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Release Systems

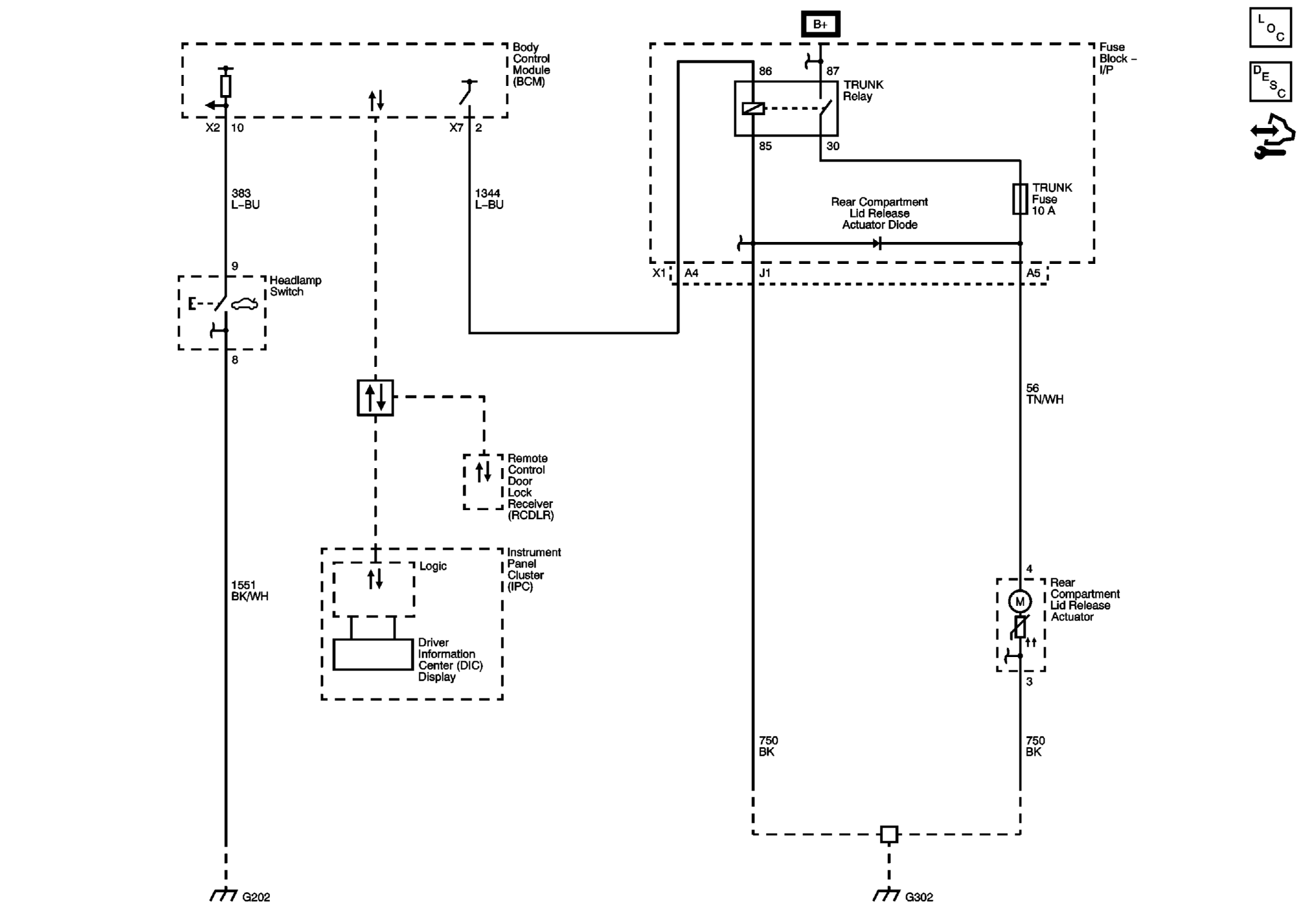

Fig 1: Release Systems Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
