Low Speed GMLAN Circuit Description

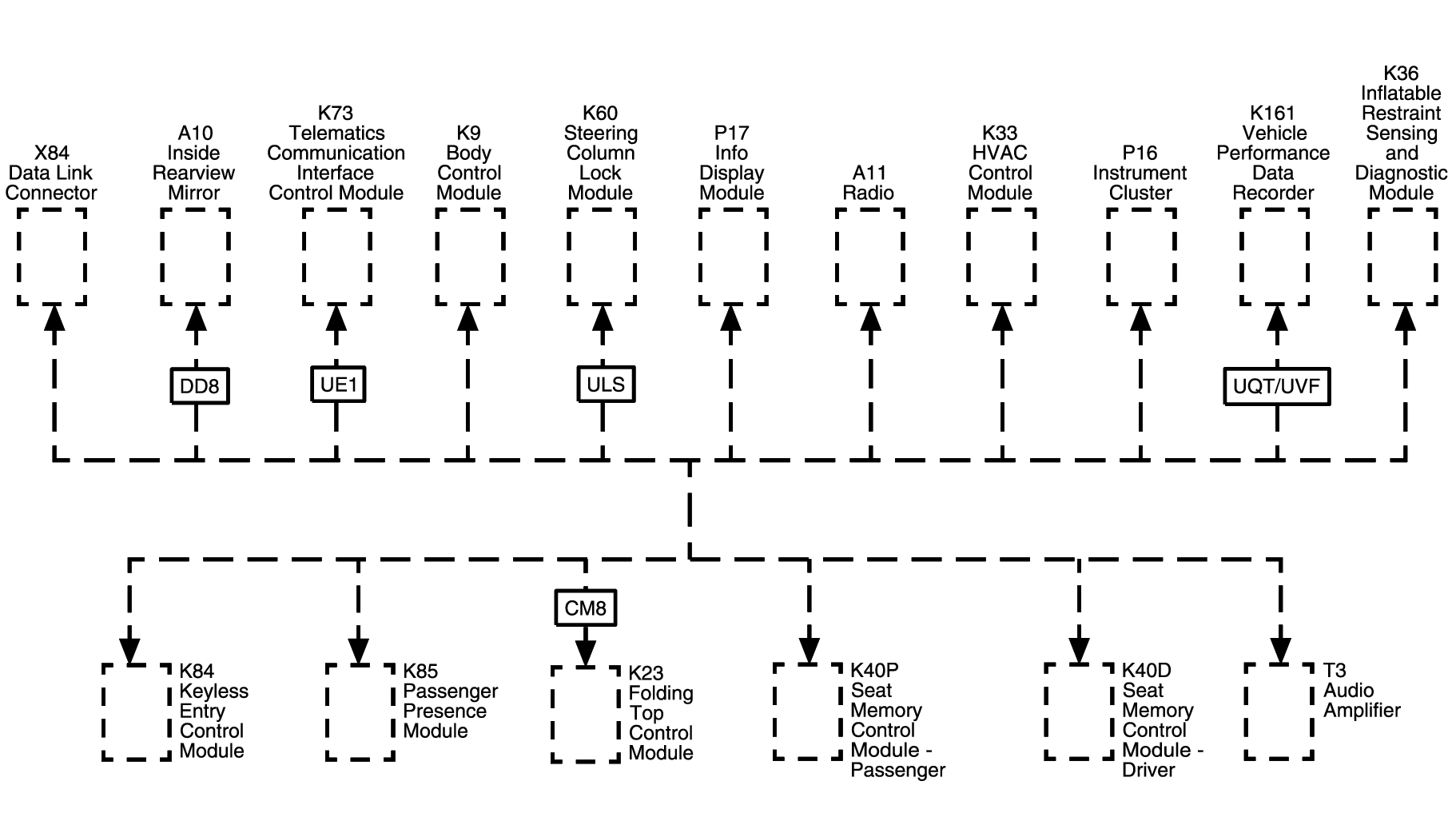

Fig 1: Low Speed GMLAN Block Diagram
GM3547308Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
DD8 MIRROR I/S R/V: LT SENSITIVE
UE1 COMMUNICATION SYSTEM: VEHICLE, ONSTAR
ULS STEERING COLUMN LOCK: MECHANICAL
UVF CAMERA: FRONT MODULE (DO NOT USE AFTER MY15)
X84 X84 Data Link Connector
A10 A10 Inside Rearview Mirror
K73 K73 Telematics Communication Interface Control Module
K9 K9 Body Control Module
K60 K60 Steering Column Lock Module
P17 P17 Info Display Module
A11 A11 Radio
K33 K33 HVAC Control Module
P16 P16 Instrument Cluster
K161 Vehicle Performance Data Recorder
K36 K36 Inflatable Restraint Sensing and Diagnostic Module
K84 K84 Keyless Entry Control Module
K85 Passenger Presence Module
K23 K23 Folding Top Control Module
K40P Seat Memory Control Module - Passenger
K40D K40D Seat Memory Control Module - Driver
T3 T3 Audio Amplifier

Low Speed GMLAN Bus is used in applications where a high data rate is not required which allows for the use of less complex components. It is typically used for operator controlled functions where the response time requirements are slower than those required for dynamic vehicle control.

The Low Speed GMLAN Serial Data Network consists of a single wire, ground referenced bus with high side voltage drive. During on road vehicle operation data symbols (1's and 0's) are transmitted sequentially at the normal rate of 33.3 Kbit/s. For component programming only, a special high speed data mode of 83.3 Kbit/s may be used.

Unlike the high speed dual wire networks, the single wire low speed network does not use terminating resistors at either end of the network.

The data symbols to be transmitted over the bus are represented by different voltage signals on the bus. When the Low Speed GMLAN Bus is at rest and is not being driven, there is a low signal voltage of approximately 0.2 V. This represents a logic "1". When a logic "0" is to be transmitted, the signal voltage is driven higher to around 4.0 V or higher.
