Chevrolet
>>
2015
>>
Captiva Sport LS
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic Wiring Diagrams
>>
Body Control System Wiring Schematics
>>
Power, Ground, and Data Communications
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power, Ground, and Data Communications

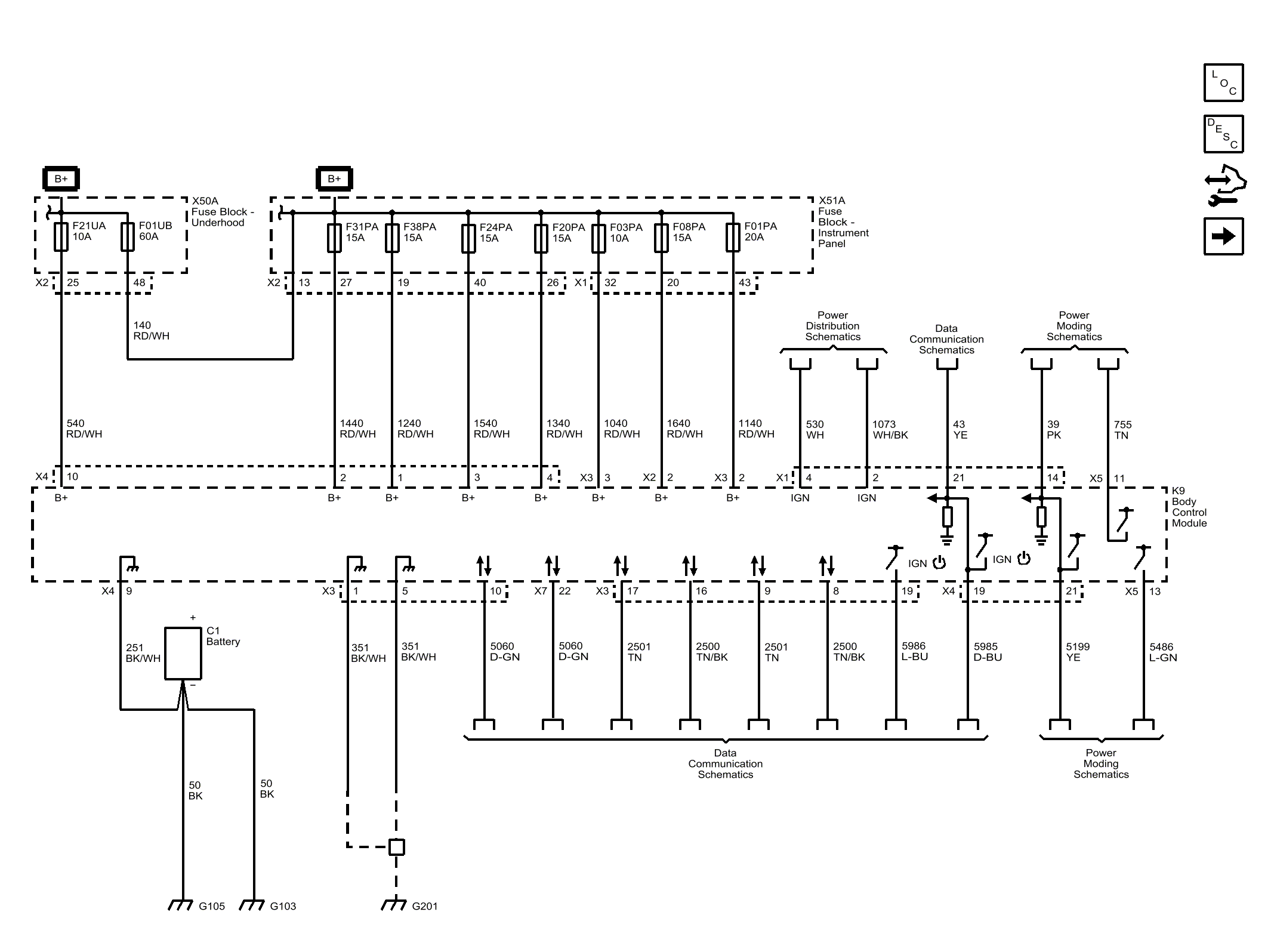

Fig 1: Power, Ground, and Data Communications
Courtesy of GENERAL MOTORS COMPANY
