Generator Splash Shield Replacement

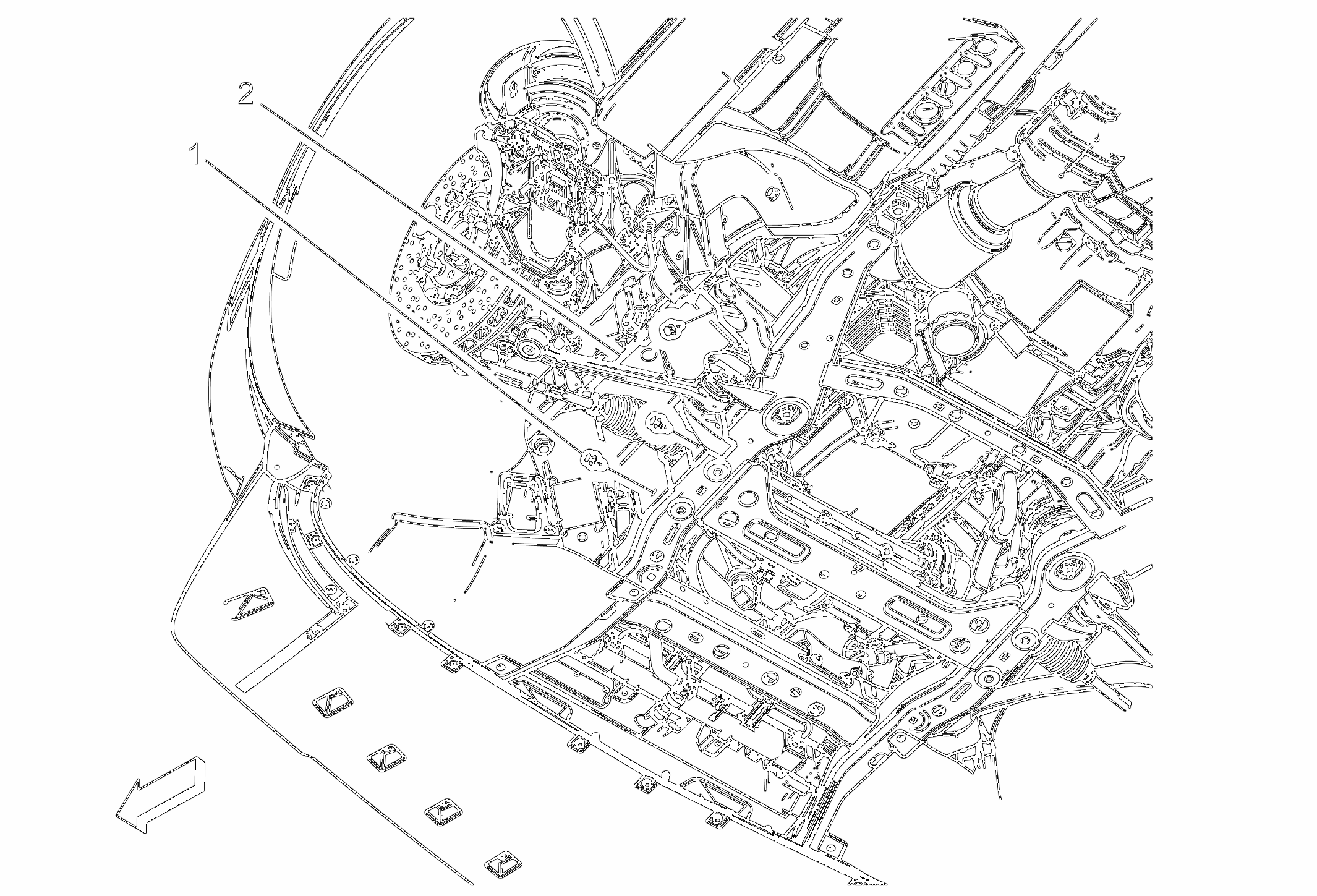

Fig 1: Generator Splash Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the left front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Without RT2)Tire and Wheel Removal and Installation (With RT2) .
1	Generator Splash Shield Retainers (Qty: 3)
2	Generator Splash Shield

Callout

Component Name

Preliminary Procedure

Generator Splash Shield Retainers (Qty: 3)

Generator Splash Shield
