Remote Control Door Lock Receiver Replacement (With UVF)
Courtesy of GENERAL MOTORS COMPANY Remote Control Door Lock Receiver Replacement (With UVF)
| Callout |
Component Name |
Preliminary Procedure
Remove the reading lamp. Refer to Reading Lamp Replacement
. |
| 1 |

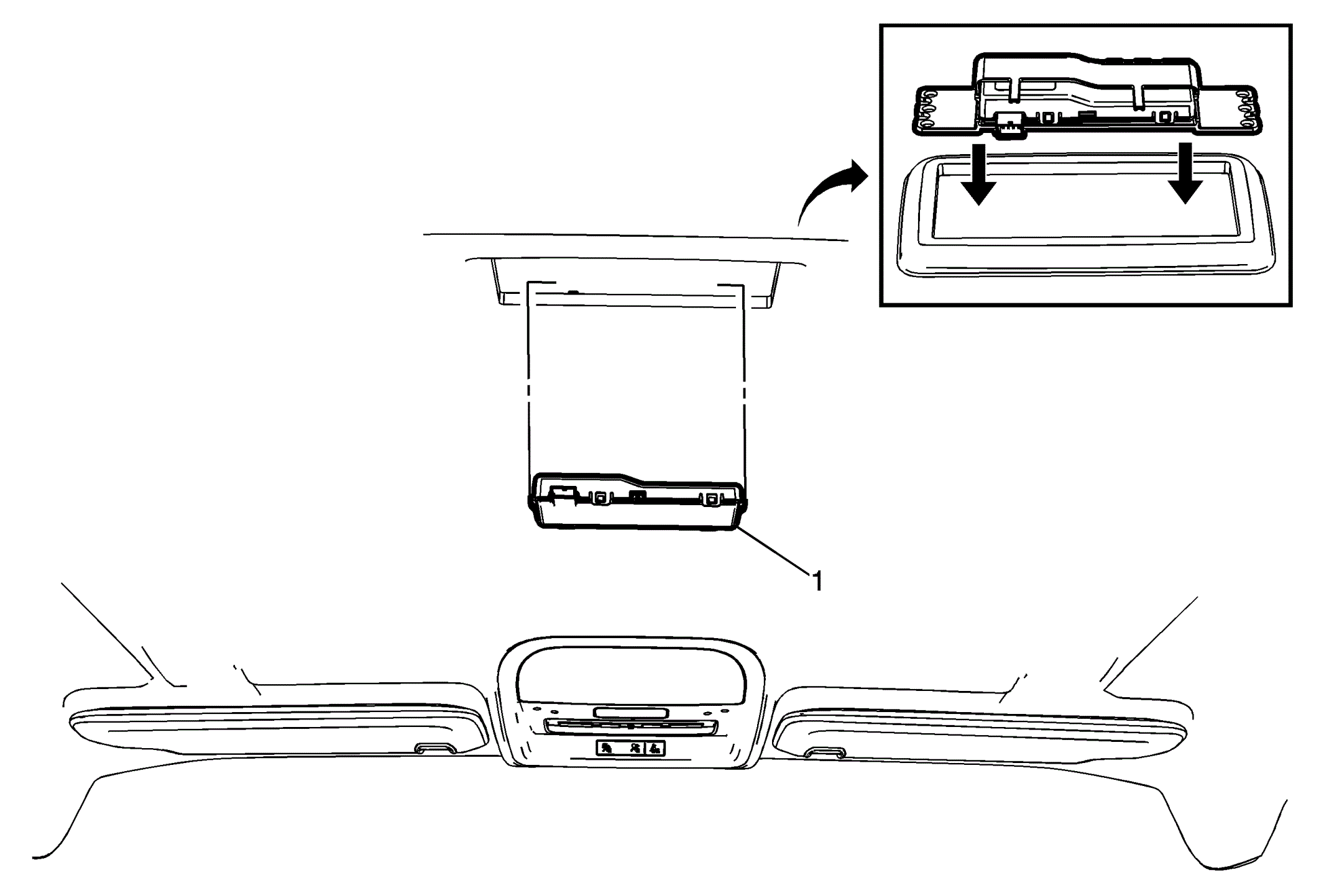

Remote Control Door Lock Receiver Procedure
- Disconnect the electrical connector.
- Slide the receiver out of the bracket and through the lamp opening in the headliner.
- For programming and set up, refer to Control Module References
.
|
