Info Display
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Info Display

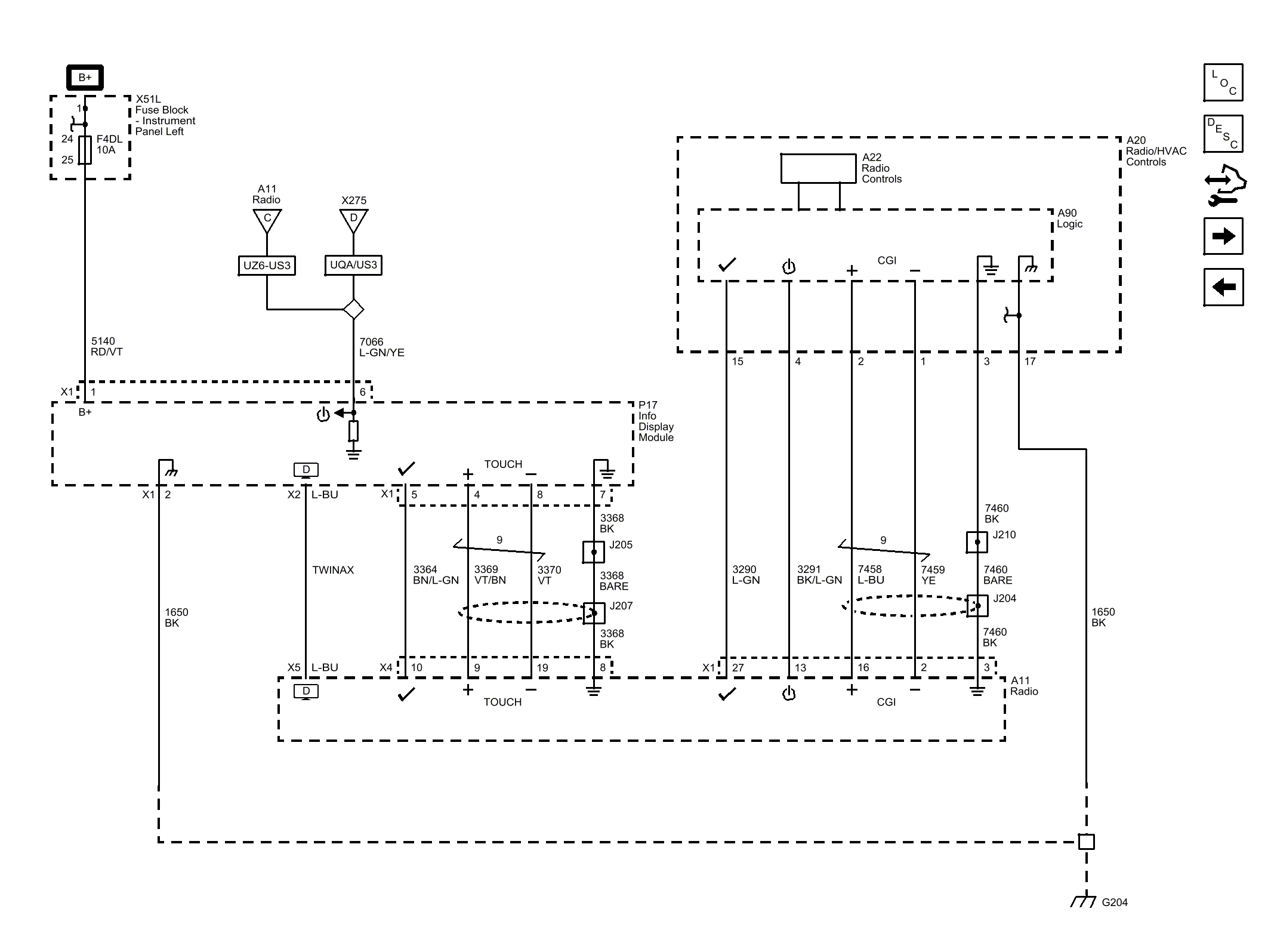

Fig 1: Info Display Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
