Navigation Display (UDN)

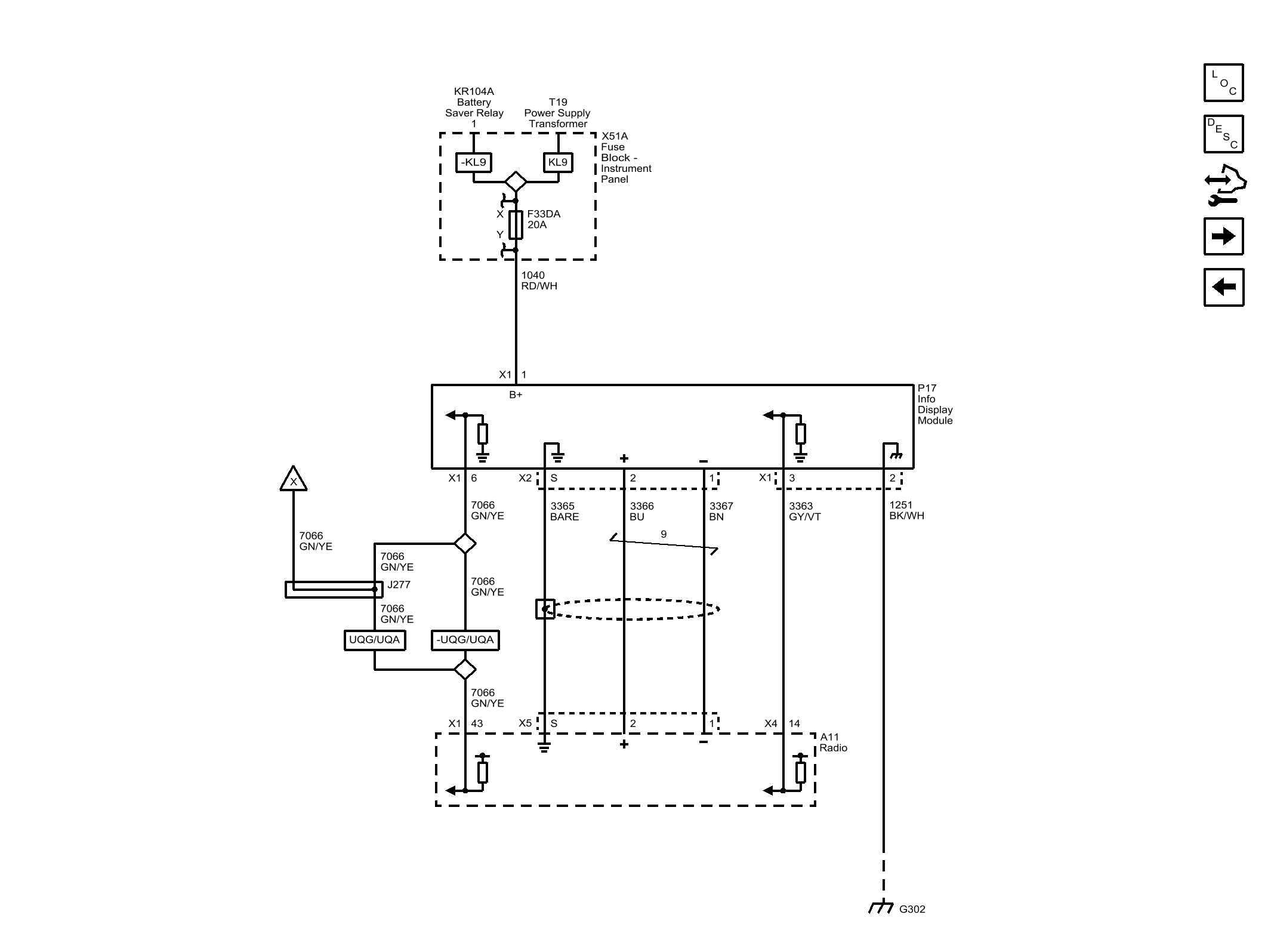

Fig 1: Navigation Display (UDN)
GM3263606Courtesy of GENERAL MOTORS COMPANY
