Chevrolet
>>
2014
>>
Trax LS, Standard Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic Wiring Diagrams
>>
Data Communication WIring Schematics (Encore)
>>
High Speed GMLAN Bus (2 of 2)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
High Speed GMLAN Bus (2 of 2)

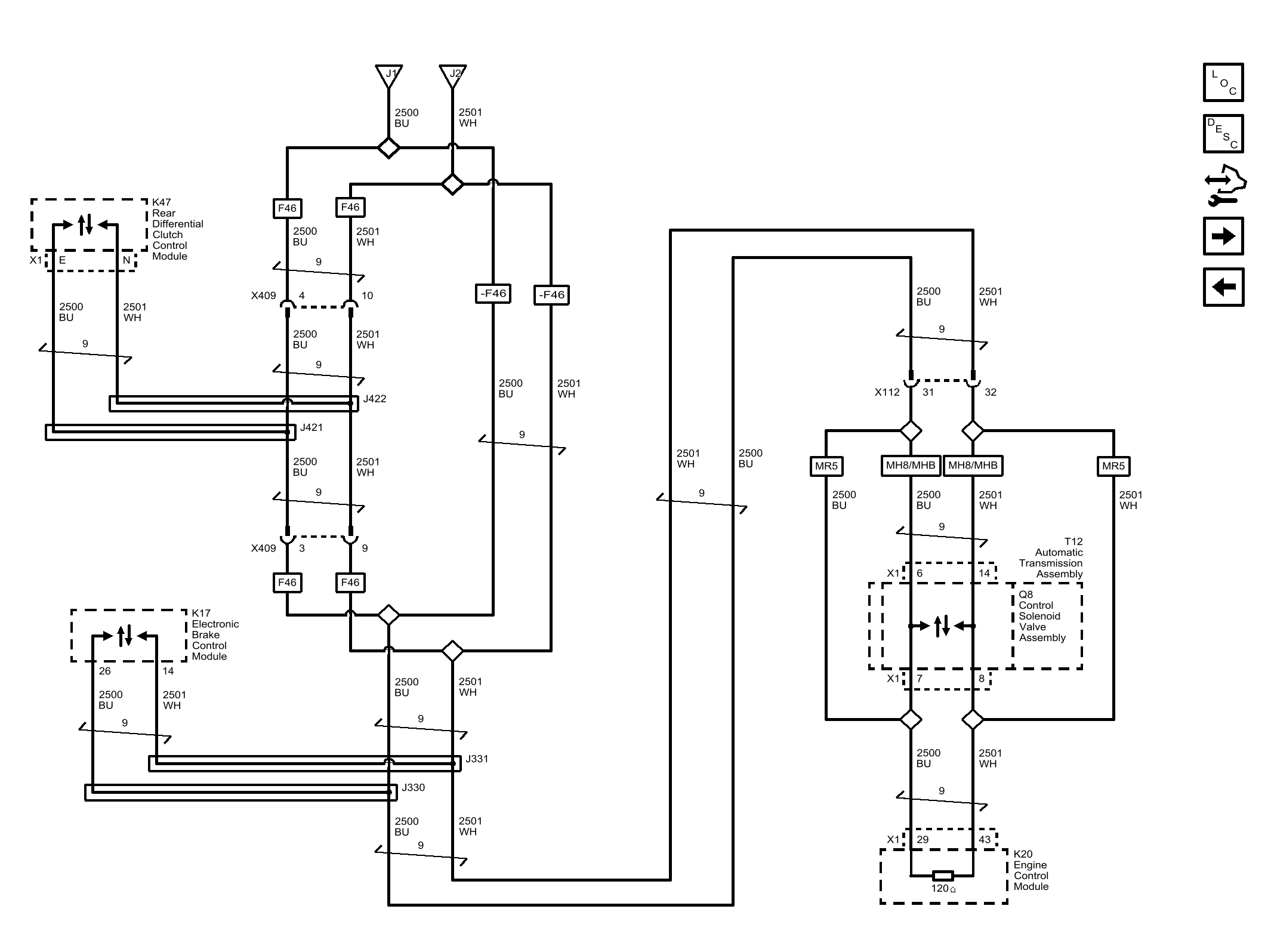

Fig 1: High Speed GMLAN Bus (2 of 2)
