Module Power, Ground and Subsystem References

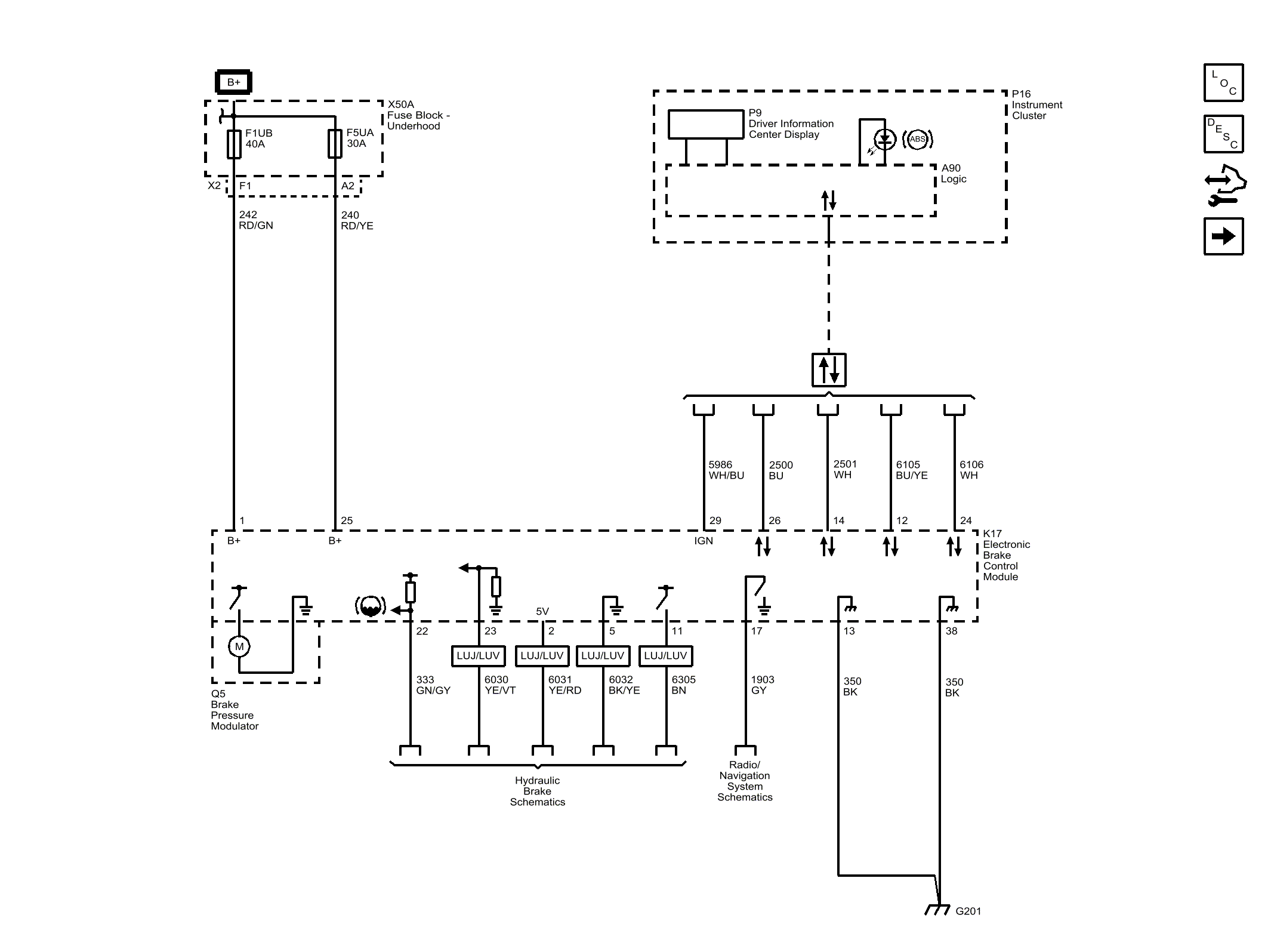

Fig 1: Module Power, Ground and Subsystem References
GM3261032Courtesy of GENERAL MOTORS COMPANY
