Cruise Control System Wiring Schematics (Encore)
>>
Cruise Control
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Cruise Control

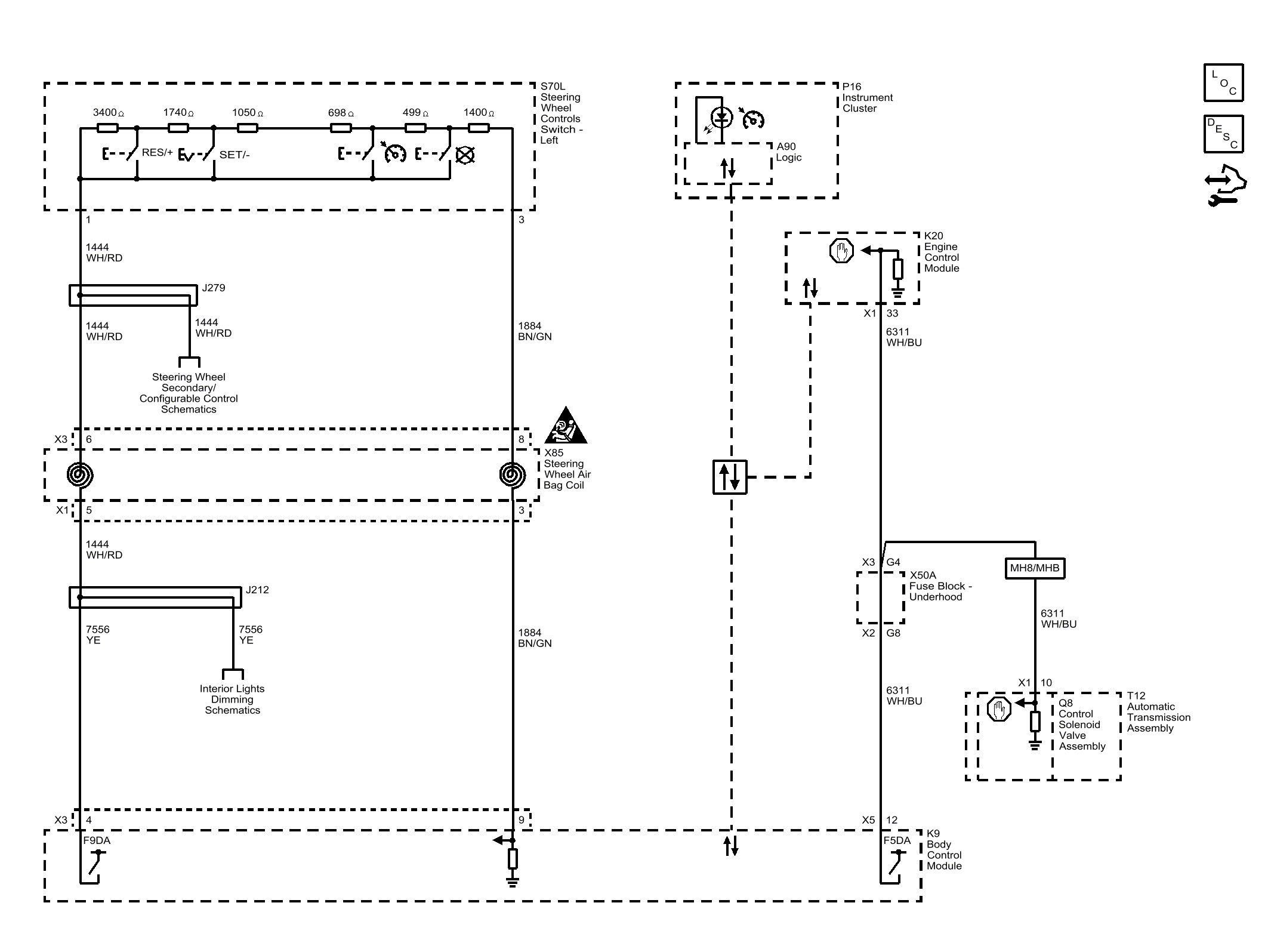

Fig 1: Cruise Control System Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
