Direct Clutch

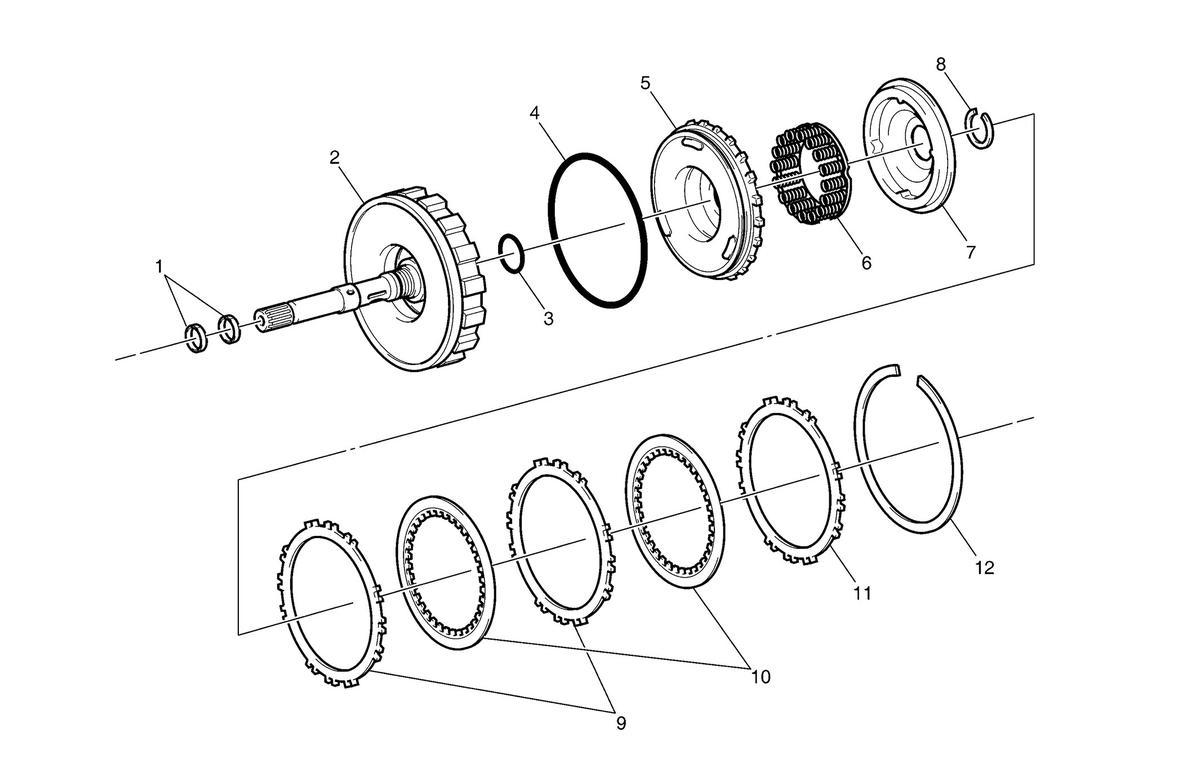

Fig 1: Exploded View Of Direct Clutch
GM2753273Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Input Shaft Oil Seal Ring
2 Input Shaft
3 O-Ring
4 O-Ring
5 Direct Clutch Piston
6 Direct Clutch Return Spring
7 Clutch No. 2 Balancer
8 Snap Ring
9 Brake No. 3 Plate
10 O/D Brake Disc
11 Brake No. 3 Flange
12 Snap Ring
