Exhaust Pipe Replacement (LFM)

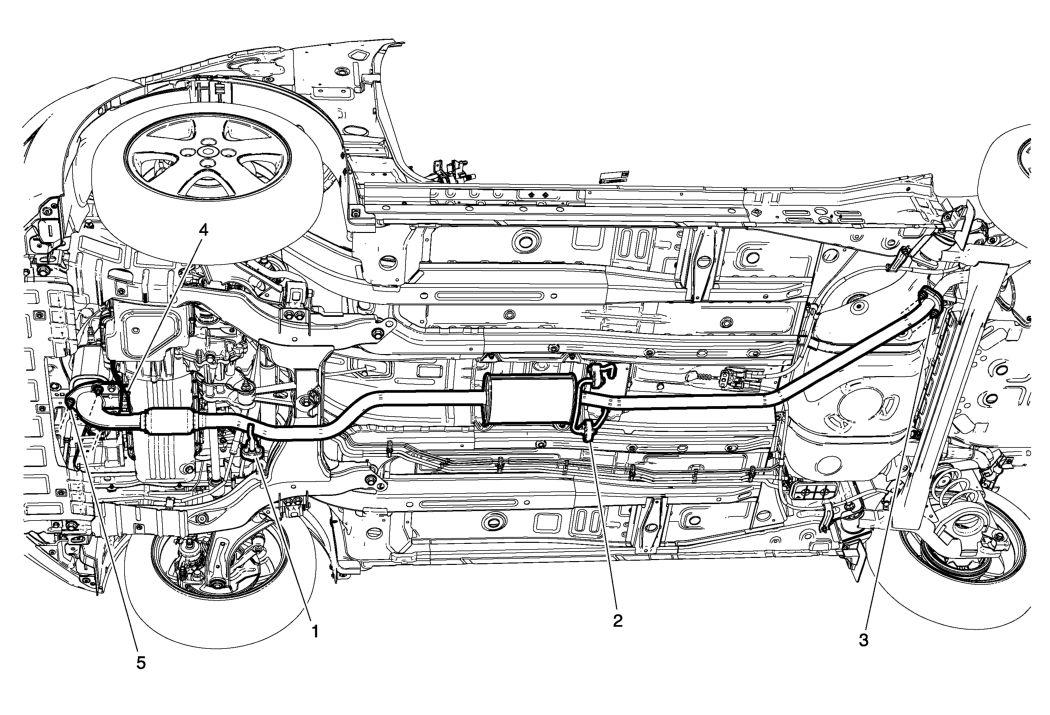

Fig 1: Exhaust Pipe (LFM)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the heated oxygen sensor 2. Refer to Heated Oxygen Sensor Replacement - Sensor 2 .
1	Exhaust Pipe Hanger (Qty: 1)
2	Exhaust Pipe Front Muffler Hanger (Qty: 2)
3	Exhaust Pipe - Rear Muffler Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 46 (34 lb ft)
4	Catalytic Converter - Exhaust Pipe Nut (Qty: 3)
5	Catalytic Converter - Exhaust Pipe Nut (Qty: 3)
