Left Side Engine Compartment (Right Hand Drive)

Left Side Engine Compartment (Right Hand Drive)

Items
1:  G36 Auxiliary Heater Coolant Pump G36 Auxiliary Heater Coolant Pump
2:  X50D Fuse Block - Battery X50D Fuse Block - Battery X1X50D Fuse Block - Battery X2X50D Fuse Block - Battery X3X50D Fuse Block - Battery X4
3:  X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4
4:  C1 Battery C1 Battery (-)
5:  B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
6:  K17 Electronic Brake Control Module K17 Electronic Brake Control Module
7:  B55 Hood Ajar Switch B55 Hood Ajar Switch

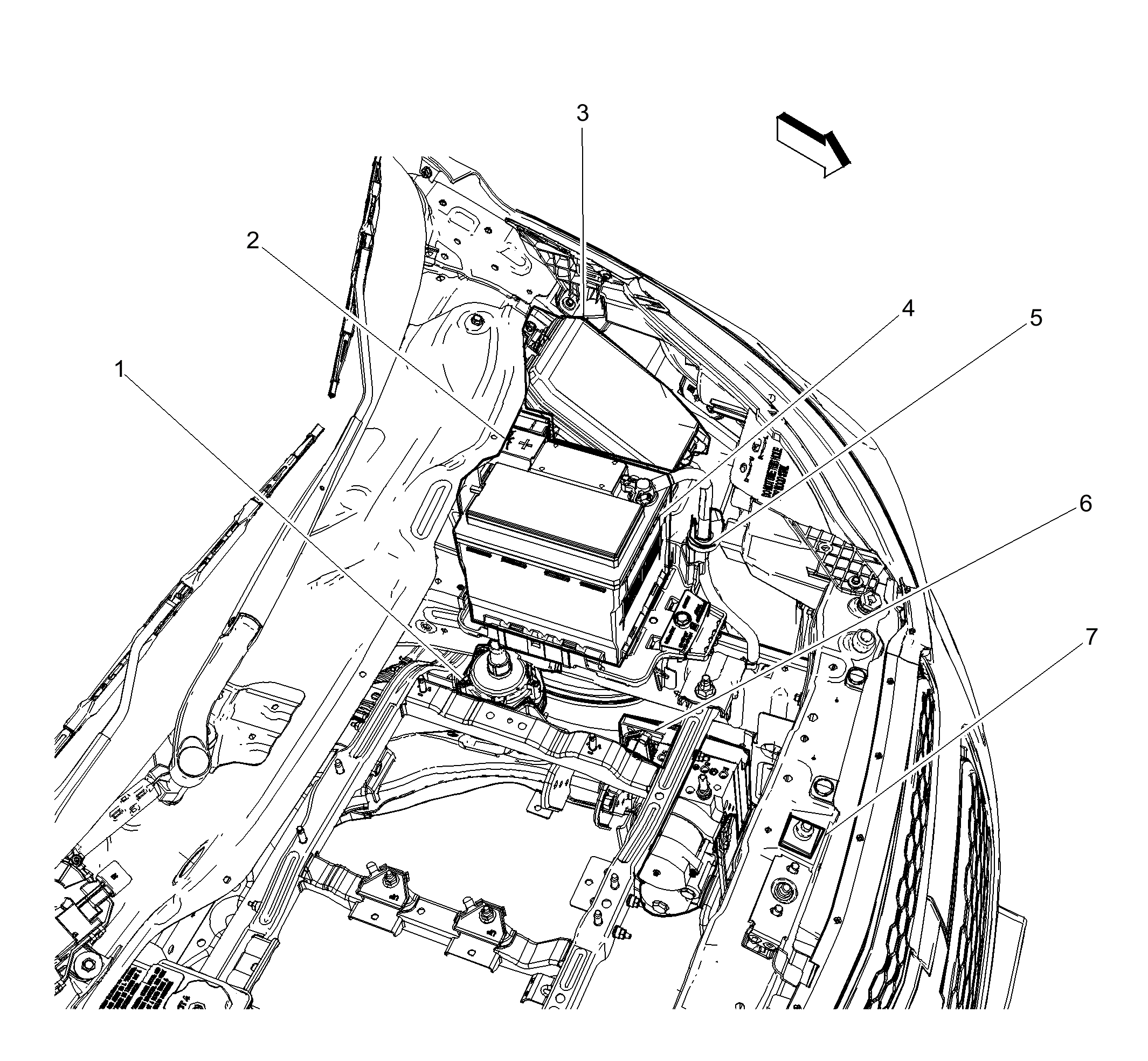

Fig 1: Left Side Engine Compartment (Right Hand Drive)
GM3216405Courtesy of GENERAL MOTORS COMPANY
