Hybrid Powertrain Control Module 2 Replacement

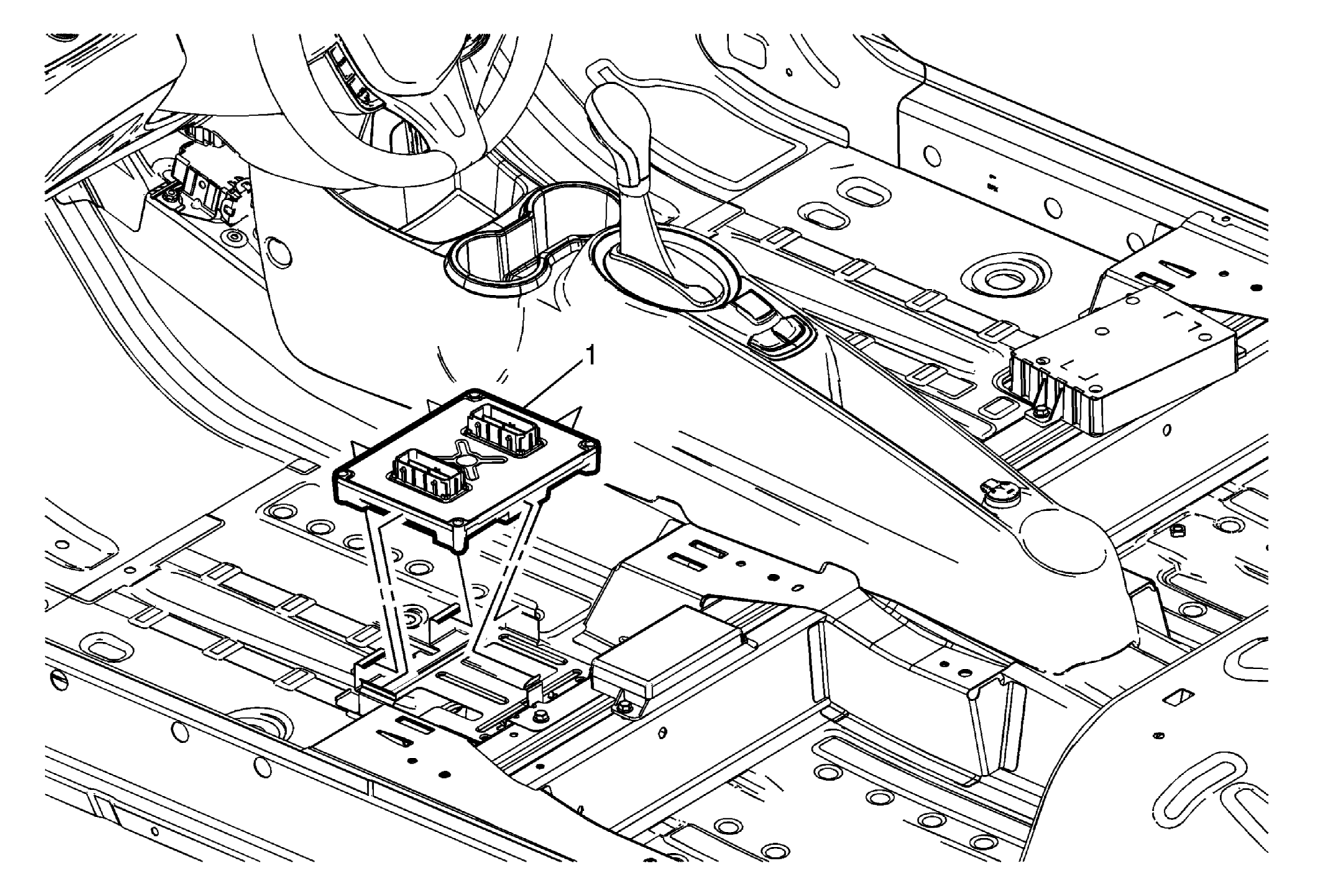

Fig 1: Hybrid Powertrain Control Module 2
GM3222690Courtesy of GENERAL MOTORS COMPANY
Hybrid Powertrain Control Module 2 Replacement

Callout Component Name

Preliminary Procedures

    WARNING:

    Refer to Battery Disconnect Warning .

  1. Disconnect the battery negative cable.
  2. Remove driver front seat. Refer to Driver or Passenger Seat Removal and Installation .
1 Hybrid Powertrain Control Module 2

Procedure

  1. Disconnect the electrical connectors.
  2. Release tabs on bracket to remove module.
