Chevrolet
>>
2014
>>
Sonic RS, 4D Hatchback, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic Wiring Diagrams
>>
Data Communication Wiring Schematics
>>
High Speed GMLAN Bus 2
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
High Speed GMLAN Bus 2

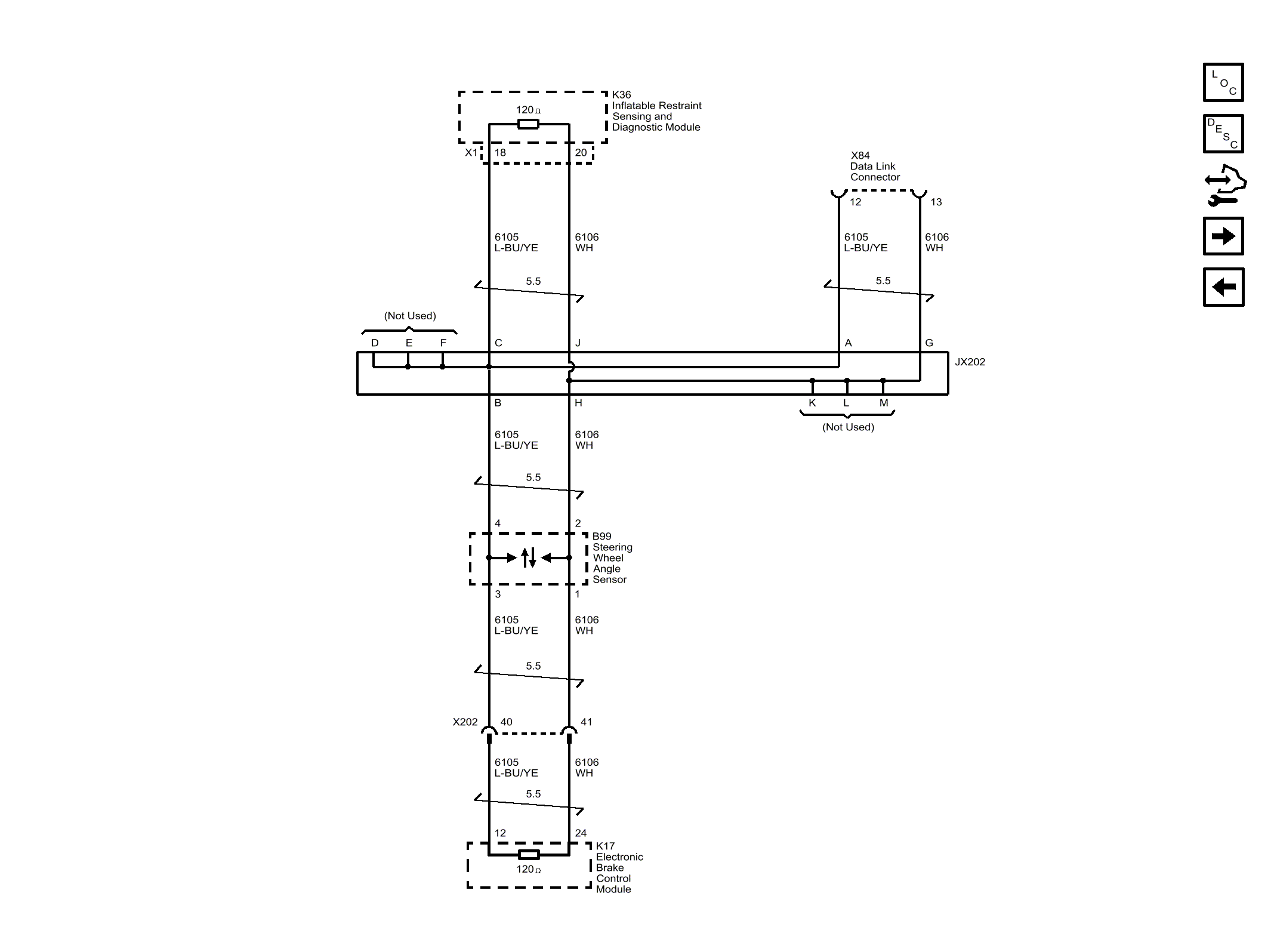

Fig 1: High Speed GMLAN Bus 2 Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
