Low Speed

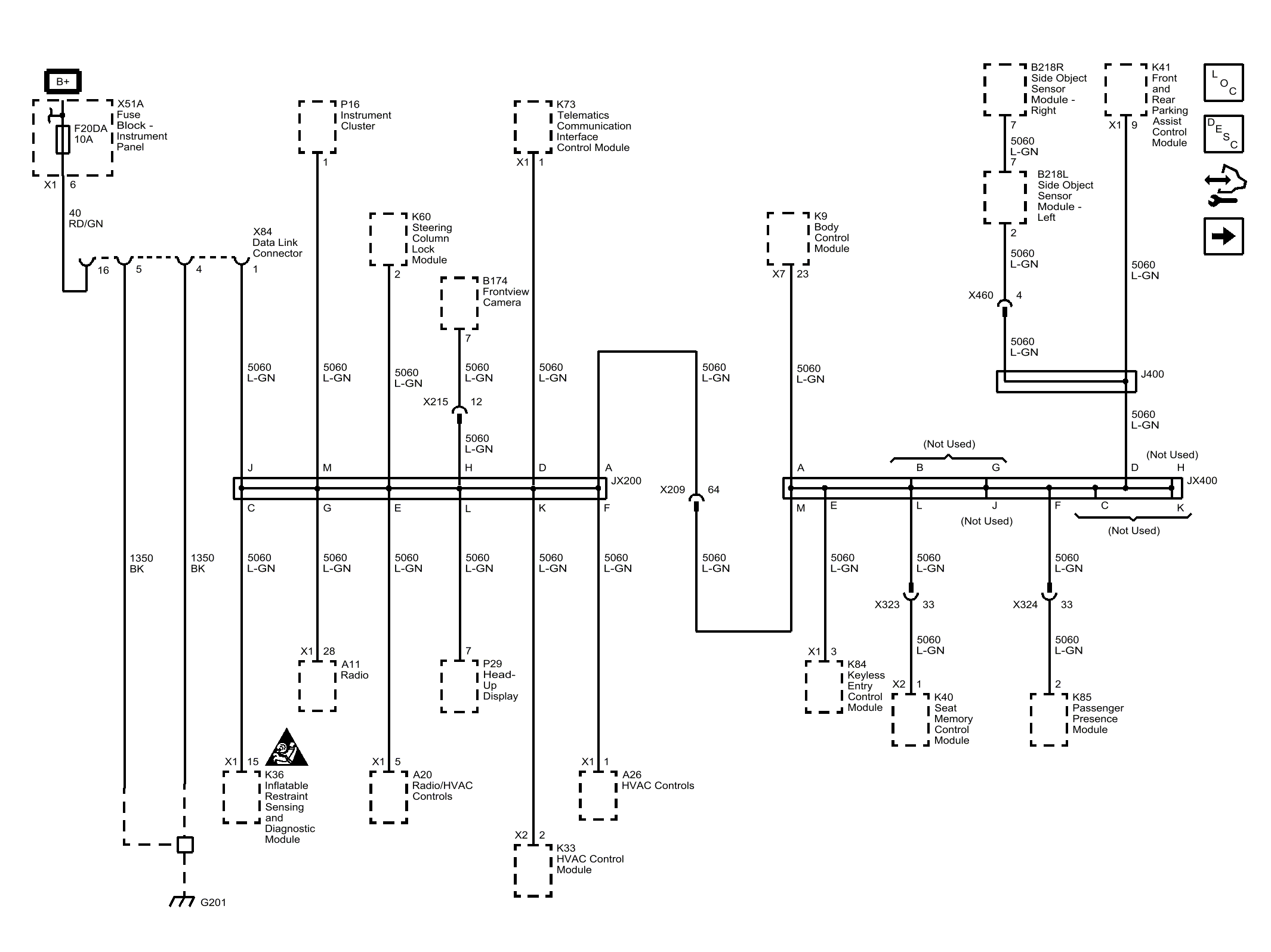

Fig 1: Low Speed Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
