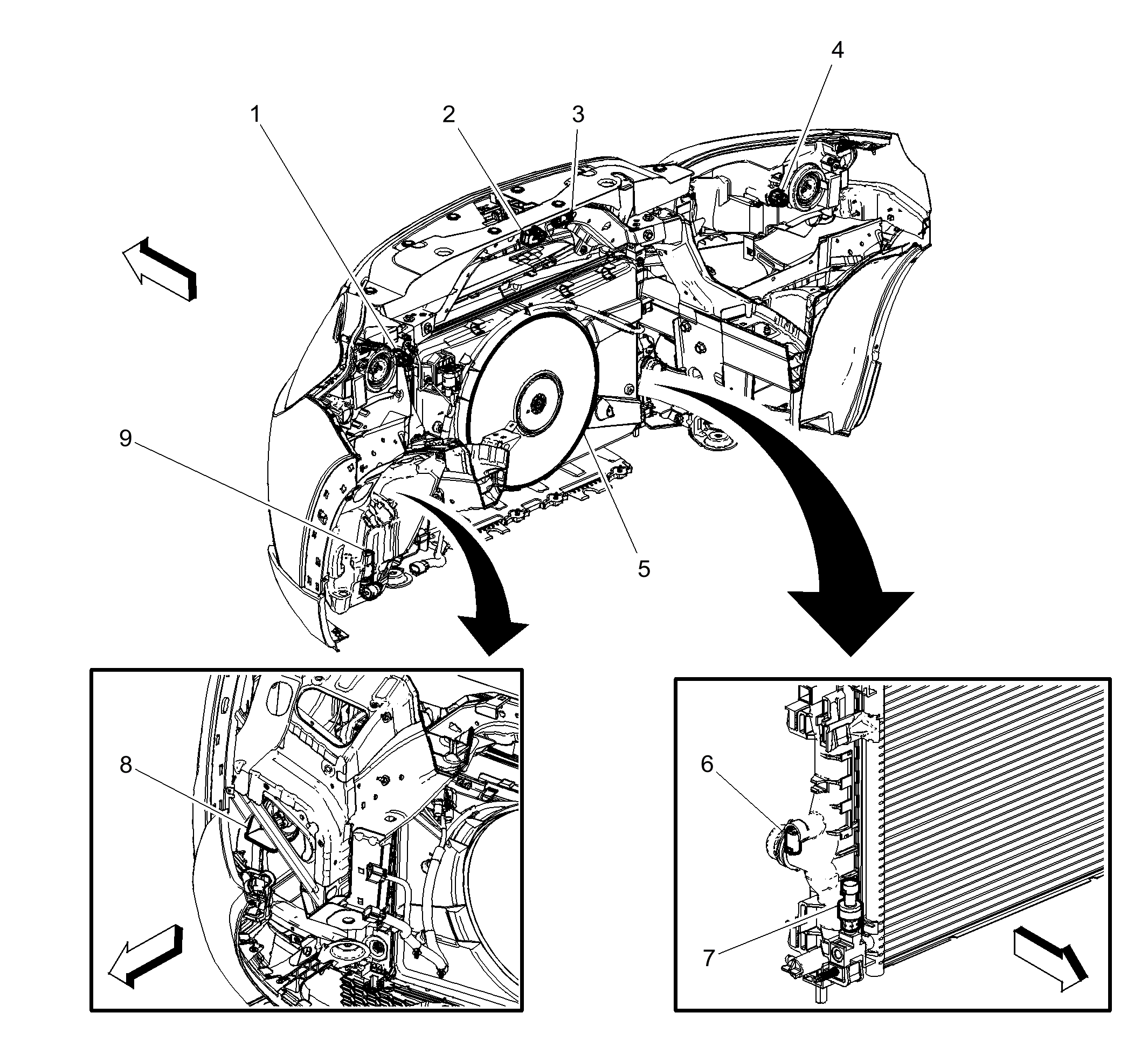

Right Front of the Engine Compartment
| Items |
|---|
| 1: B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left (Z49) |
| 2: B55 Hood Ajar Switch B55 Hood Ajar Switch |
| 3: B34 Engine Coolant Temperature Sensor |
| 4: B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor |
| 5: G10 Cooling Fan Motor G10 Cooling Fan Motor |
| 6: G24 Windshield Washer Pump G24 Windshield Washer Pump |
| 7: P12 Horn P12 Horn |
| 8: G24 Windshield Washer Pump G24 Windshield Washer Pump |
| 9: P12 Horn P12 Horn |
