Front Side Door Window Regulator Guide Replacement

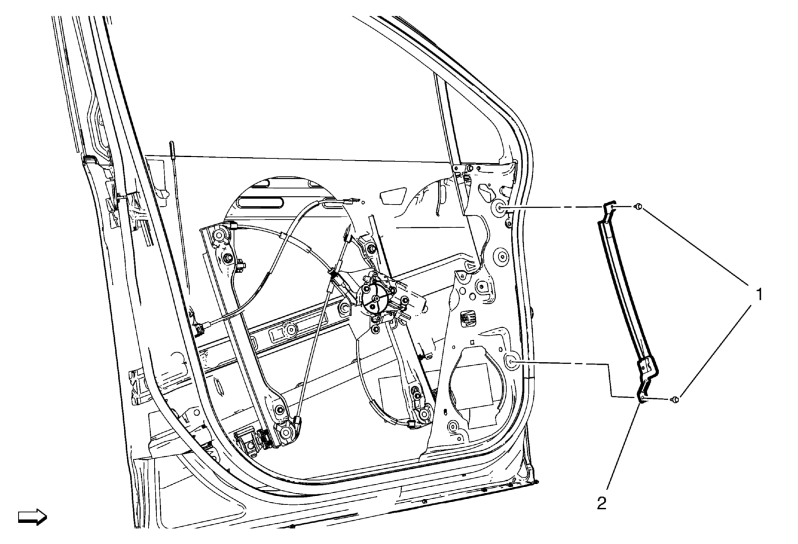

Fig 1: Front Side Door Window Regulator Guide
GM2372622Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator Guide Replacement

Callout Component Name
Preliminary Procedure
Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement .
1 Front Side Door Window Regulator Guide Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Front Side Door Window Regulator Guide
