Installation Procedure

  1. Reposition the secondary air injection pump inlet hose to the vehicle.

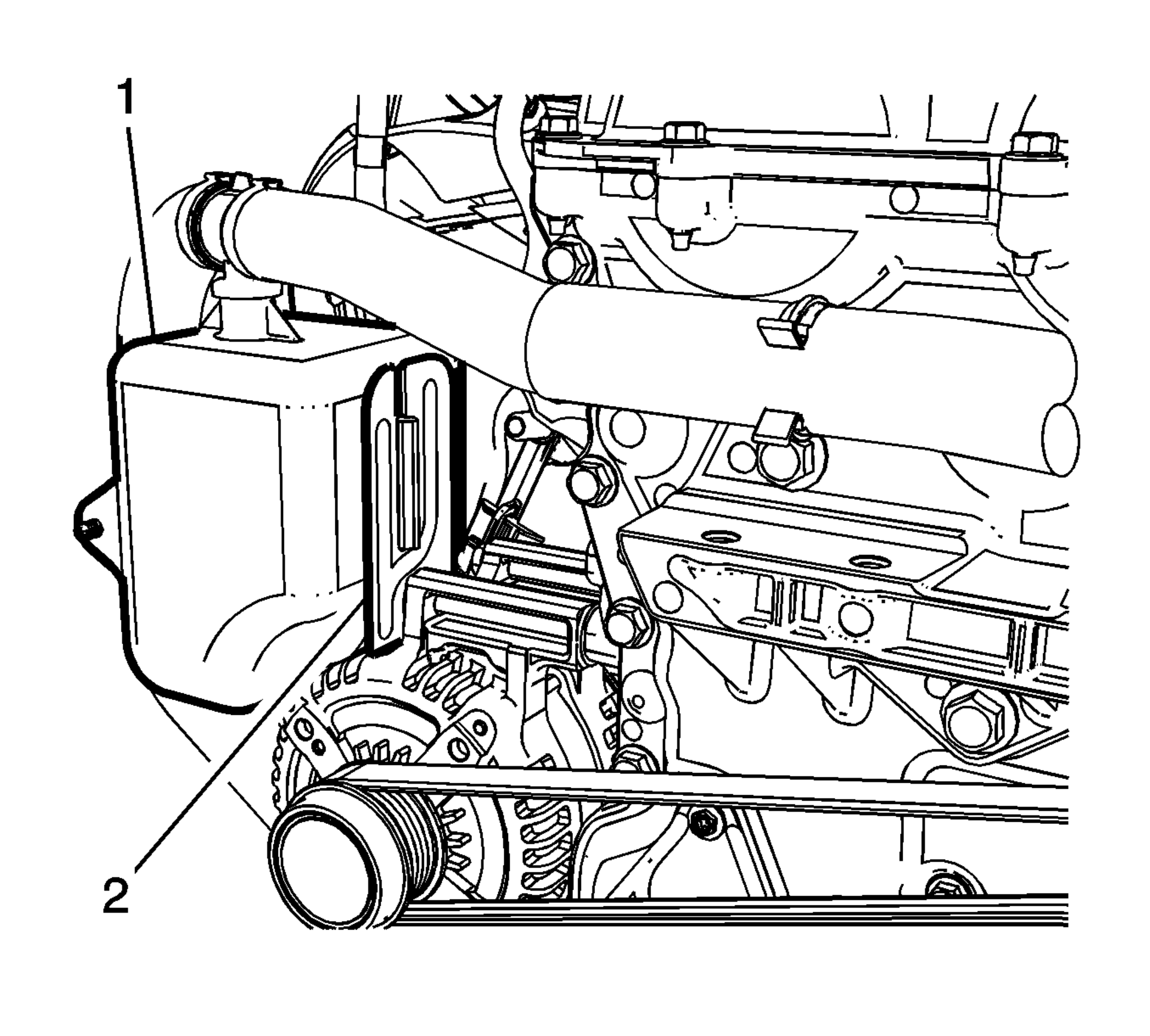

    2. Fig 1: Secondary Air Injection Pump Inlet Hose Canister
    GM2810976Courtesy of GENERAL MOTORS COMPANY
  2. Install the secondary air injection pump inlet hose canister (1) to the bracket (2).
  3. Raise and properly support the vehicle. Refer to Lifting and Jacking the Vehicle .

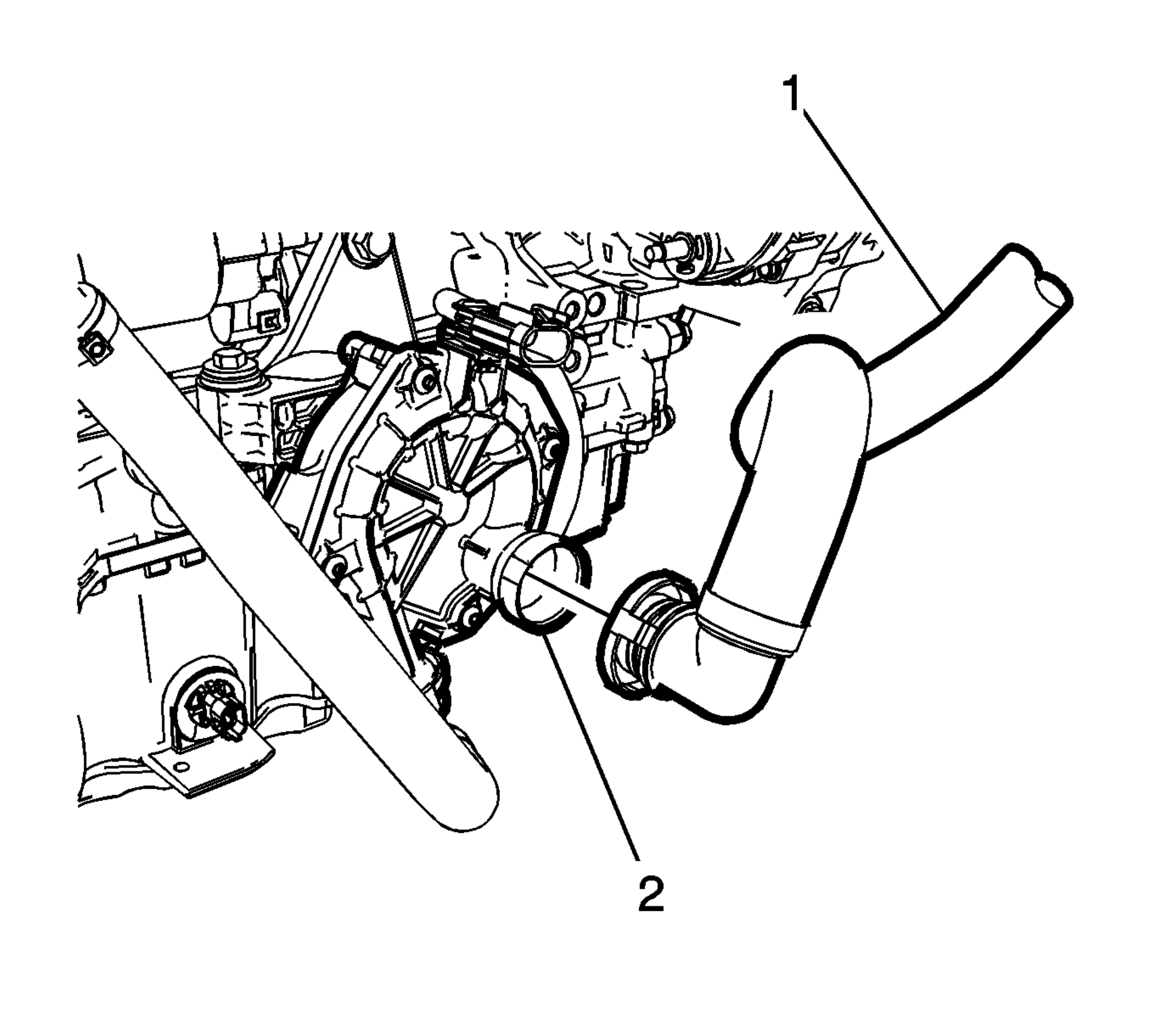

    4. Fig 2: Secondary Air Injection Pump Inlet Hose
    GM2810979Courtesy of GENERAL MOTORS COMPANY
  4. Connect the secondary air injection pump inlet hose (1) to the secondary air injection pump (2). Refer to Plastic Collar Quick Connect Fitting Service .
  5. Lower the vehicle.

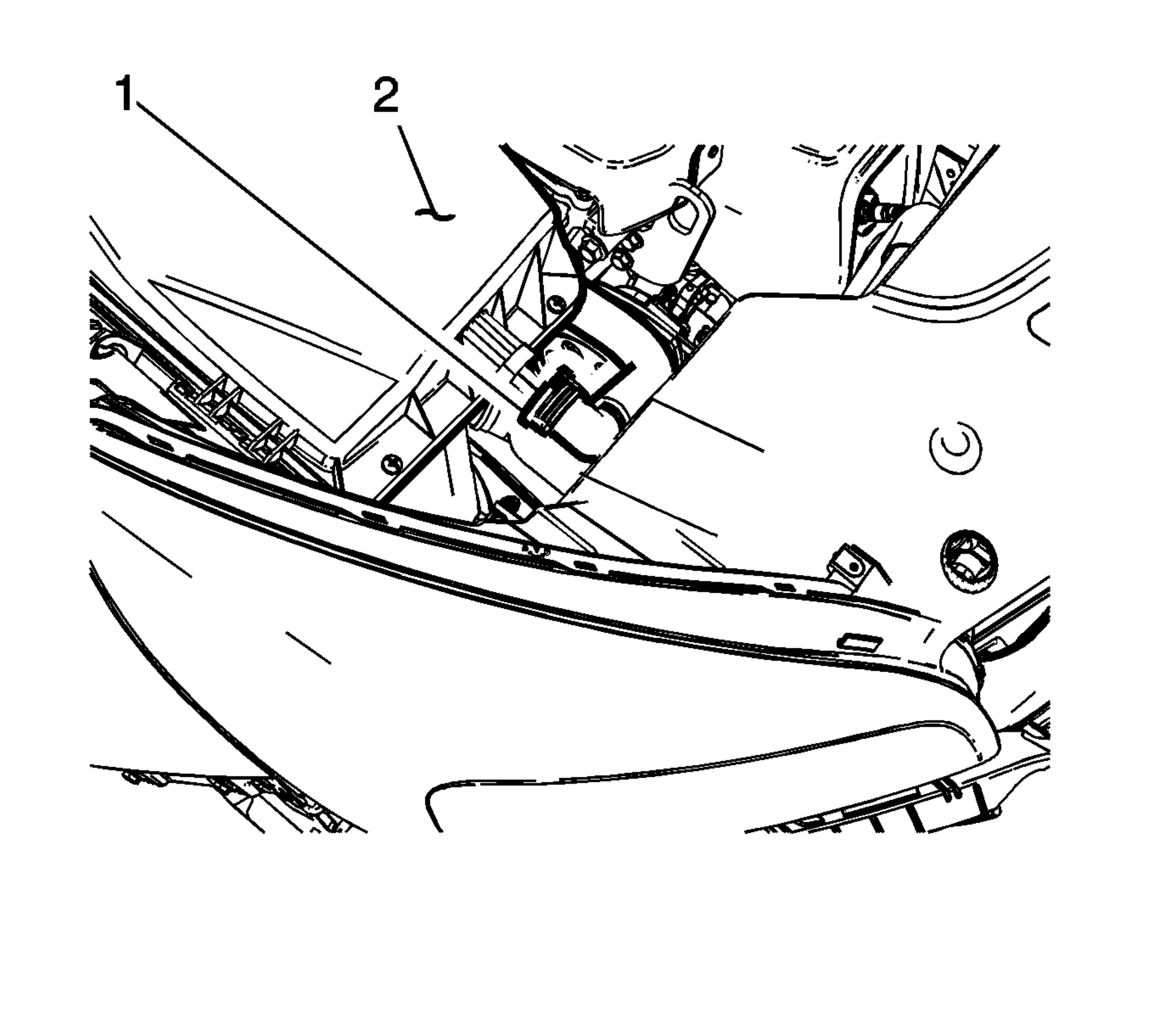

    6. Fig 3: Secondary Air Injection Pump Inlet Hose
    GM2810973Courtesy of GENERAL MOTORS COMPANY
  6. Connect the secondary air injection pump inlet hose (1) to the air cleaner assembly (2).
  7. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
