Fuel Injection Fuel Rail Noise Shield Replacement

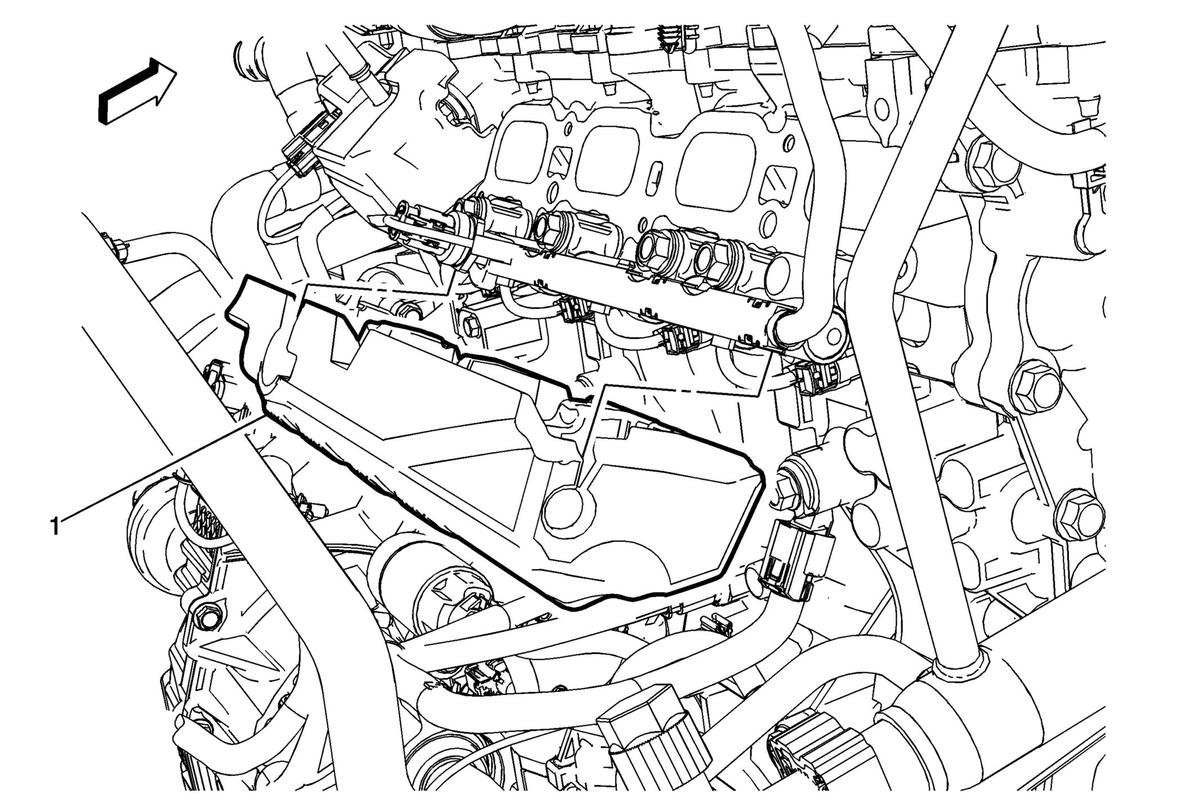

Fig 1: Fuel Injection Fuel Rail Noise Shield
GM2864230Courtesy of GENERAL MOTORS COMPANY
Fuel Injection Fuel Rail Noise Shield Replacement

Callout Component Name
Preliminary Procedure
Remove the intake manifold. Refer to Intake Manifold Replacement .
1 Fuel Injection Fuel Rail Noise Shield
NOTE:

The fuel injection noise shield just snaps into place.
