Fuel Feed Pipe Replacement (At Tank)

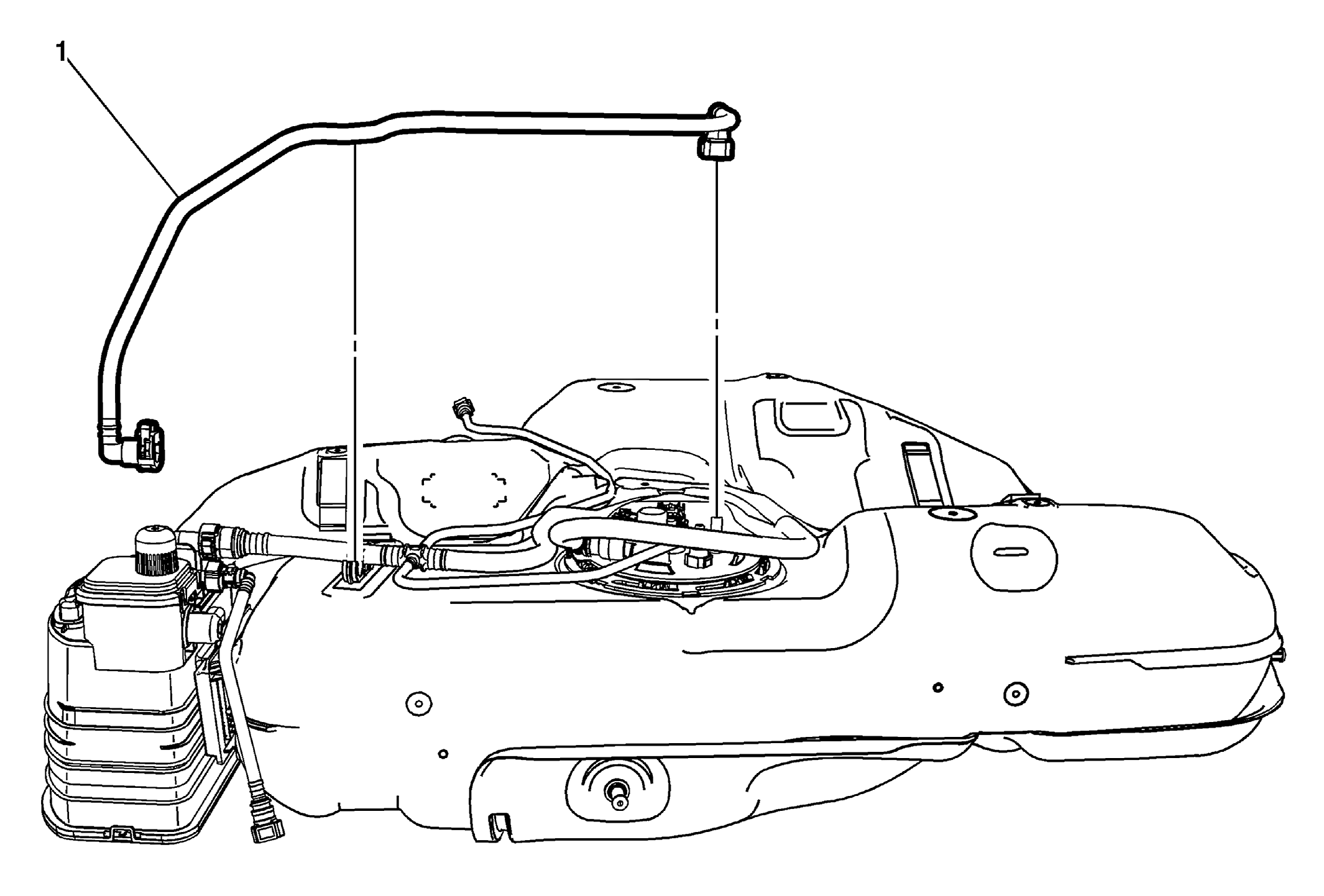

Fig 1: Fuel Feed Pipe (At Tank FWD)
GM2756285Courtesy of GENERAL MOTORS COMPANY
Fuel Feed Pipe Replacement (At Tank)

Callout Component Name
Preliminary Procedure
Remove the fuel tank. Refer to Fuel Tank Replacement .
1 Fuel Feed Pipe

Procedure

  1. Disconnect the fuel feed pipe from the fuel tank retainer.
  2. Disconnect the fuel feed pipe from the fuel pump module. Refer to Plastic Collar Quick Connect Fitting Service .
