Vehicle Stability Control System Switch Replacement

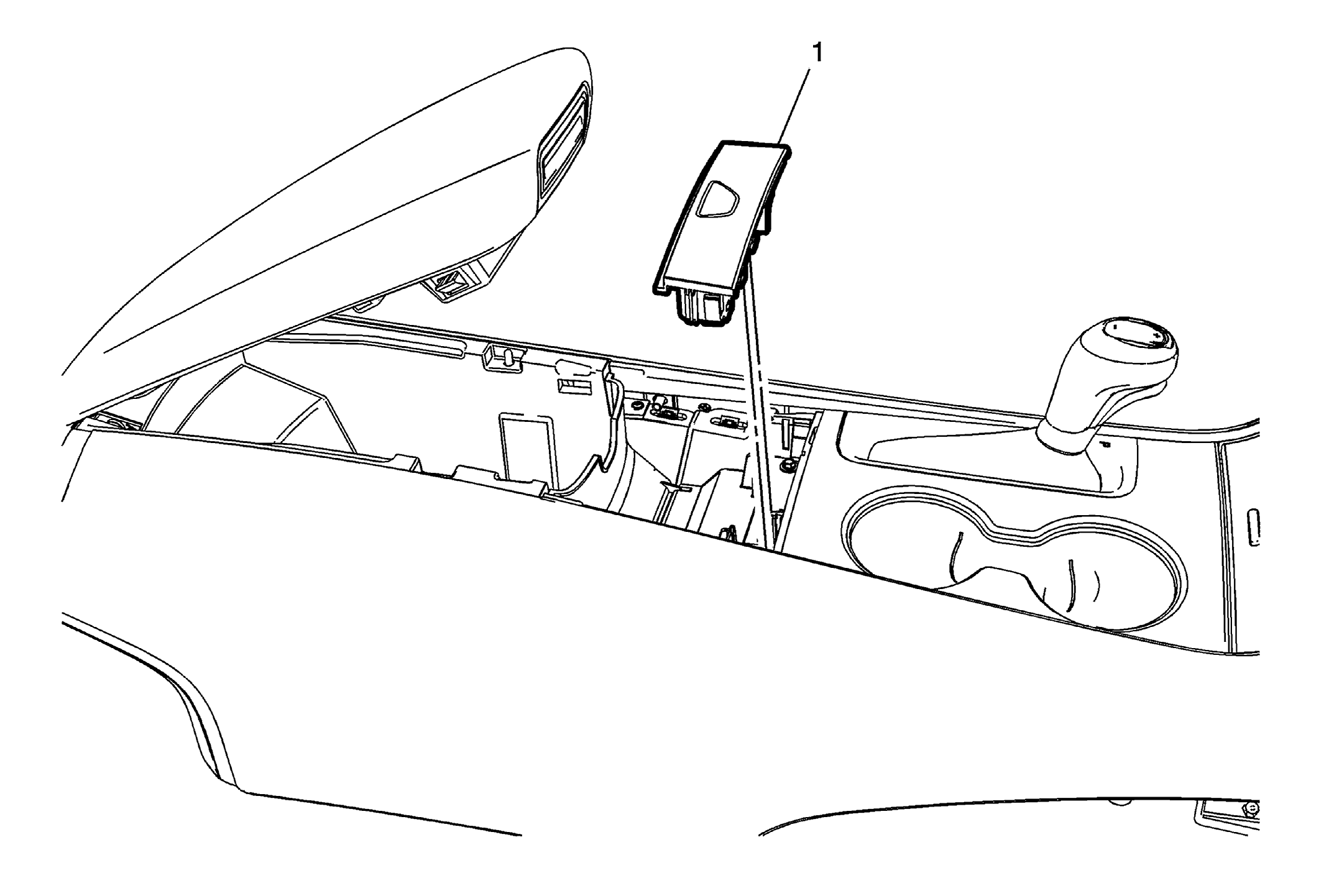

Fig 1: Vehicle Stability Control System Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console insert. Refer to Front Floor Console Insert Replacement .
1	Vehicle Stability Control System Switch Procedure Using the appropriate tool depress the tabs on the switch and gently remove. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the front floor console insert. Refer to Front Floor Console Insert Replacement .

Vehicle Stability Control System Switch

Procedure
