Chevrolet
>>
2014
>>
Express 1500 LS, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic Wiring Diagrams
>>
Data Communication Wiring Schematics
>>
High Speed GMLAN (Gas)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
High Speed GMLAN (Gas)

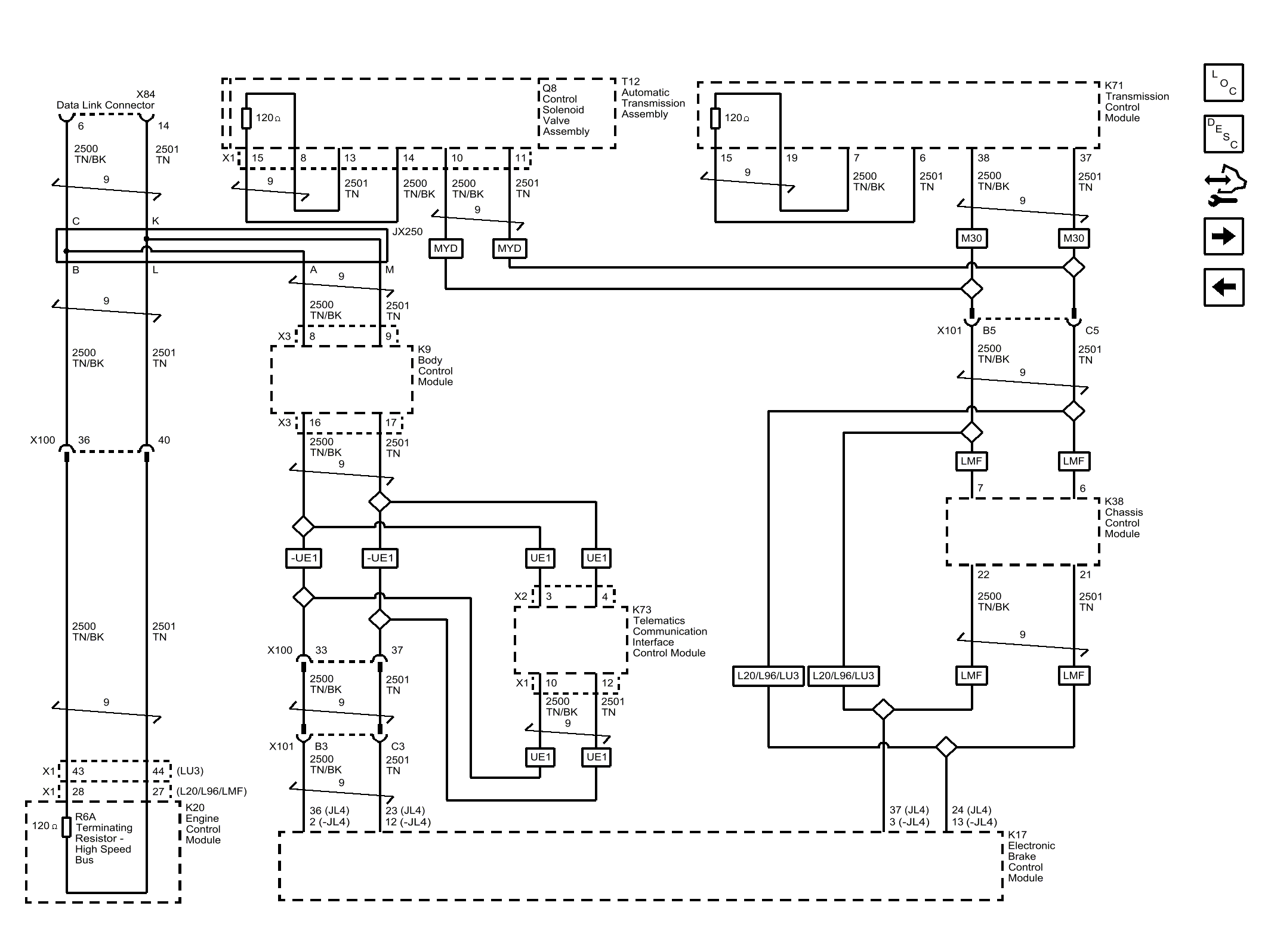

Fig 1: High Speed GMLAN (Gas) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
