Installation Procedure

  1. Position the window to the full up position.

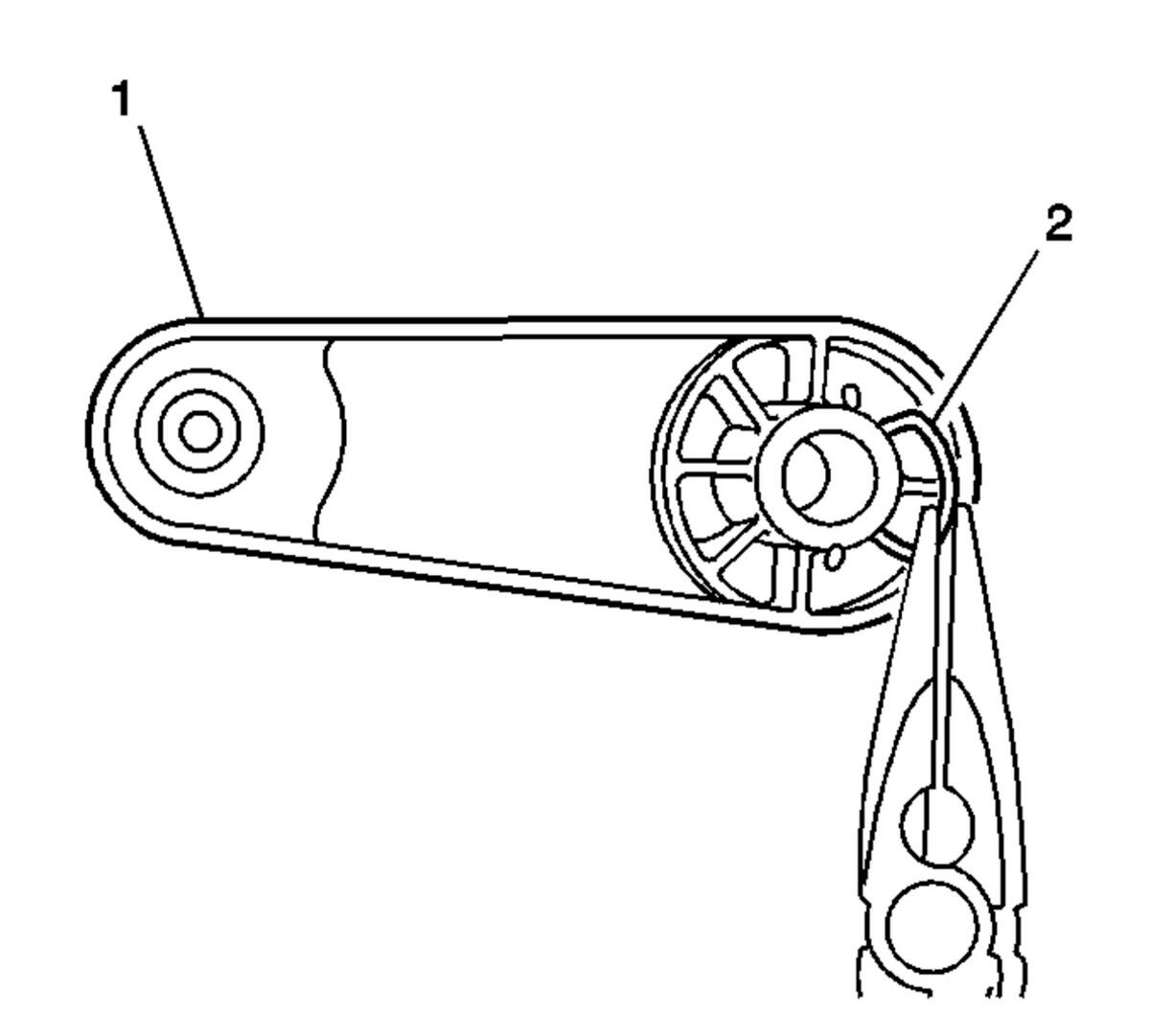

    2. Fig 1: Installing Spring Clip To Door Window Regulator Handle
    GM748354Courtesy of GENERAL MOTORS COMPANY
  2. Install the spring clip (2) to the door window regulator handle (1).
  3. Install the door window regulator handle (1) bearing plate.
  4. Position the door window regulator (1) handle to the regulator.
  5. Install the door window regulator handle (1), press in until fully seated.
